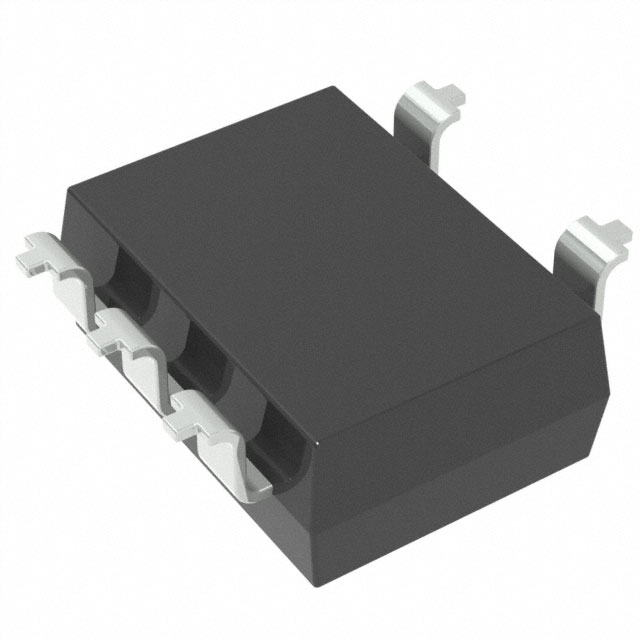

APT1222AZ

Active

Panasonic Electric Works

OPTOISOLATOR 5KV TRIAC 6DIP

Search across all available documentation for this part.

Active

Panasonic Electric Works

OPTOISOLATOR 5KV TRIAC 6DIP

Technical Specifications

Parameters and characteristics for this part

Specification	APT1222AZ

Approval Agency	cUR, VDE
Current - DC Forward (If) (Max)	50 mA
Current - Hold (Ih)	3.5 mA
Current - LED Trigger (Ift) (Max) [Max]	10 mA
Current - On State (It (RMS)) (Max)	100 mA
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Output Type	Triac
Package / Case	5-SMD, Gull Wing
Static dV/dt (Min) [Min]	500 V/µs
Supplier Device Package	6-DIP Gull Wing
Turn On Time	100 µs
Voltage - Forward (Vf) (Typ)	1.21 V
Voltage - Off State	600 V
Zero Crossing Circuit	False

Part	Static dV/dt (Min) [Min]	Voltage - Off State	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Channels	Current - LED Trigger (Ift) (Max) [Max]	Turn On Time	Current - DC Forward (If) (Max)	Current - On State (It (RMS)) (Max)	Approval Agency	Current - Hold (Ih)	Voltage - Forward (Vf) (Typ)	Package / Case	Output Type	Supplier Device Package
Panasonic Electric Works APT1222WAY	500 V/µs	600 V	Surface Mount	100 °C	-40 °C	1	10 mA	100 µs	50 mA	100 mA	cUR VDE	3.5 mA	1.21 V	6-SMD (5 Leads) Gull Wing	Triac	6-DIP Gull Wing
Panasonic Electric Works APT1222AZ	500 V/µs	600 V	Surface Mount	100 °C	-40 °C	1	10 mA	100 µs	50 mA	100 mA	cUR VDE	3.5 mA	1.21 V	5-SMD Gull Wing	Triac	6-DIP Gull Wing
Panasonic Electric Works APT1222WA	500 V/µs	600 V	Surface Mount	100 °C	-40 °C	1	10 mA	100 µs	50 mA	100 mA	cUR VDE	3.5 mA	1.21 V	6-SMD (5 Leads) Gull Wing	Triac	6-DIP Gull Wing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Triac Output 5000Vrms 1 Channel 6-DIP Gull Wing
