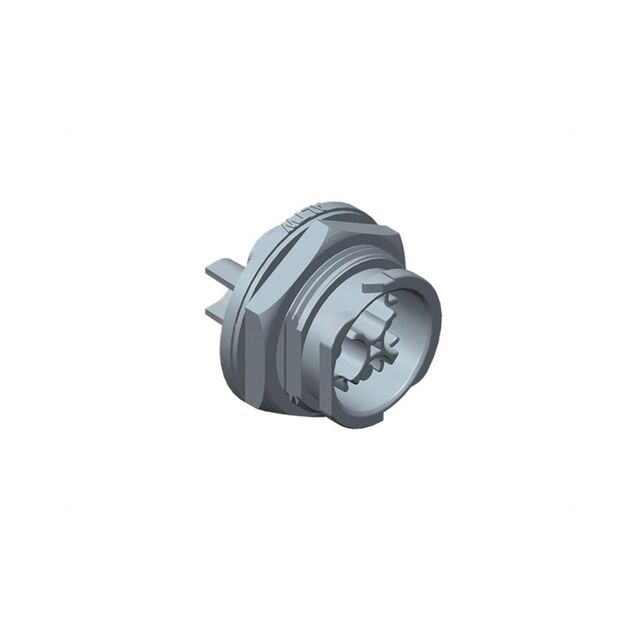

DCD-06PMMS-QC8001
ActiveAmphenol LTW
XLOK, D-20A+5A, 06P, FRONT FASTE
Deep-Dive with AI
Search across all available documentation for this part.
DCD-06PMMS-QC8001
ActiveAmphenol LTW
XLOK, D-20A+5A, 06P, FRONT FASTE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DCD-06PMMS-QC8001 |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A, 20 A |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Positions | 6 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Size - Insert | D |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 9.98 | |
Description
General part information
DCD-06PMMS Series
6 Position Circular Connector Receptacle, Male Pins Solder Cup
Documents
Technical documentation and resources
No documents available
