928962-2 - 928962-2

928962-2

Active
TE Connectivity AMP Connectors

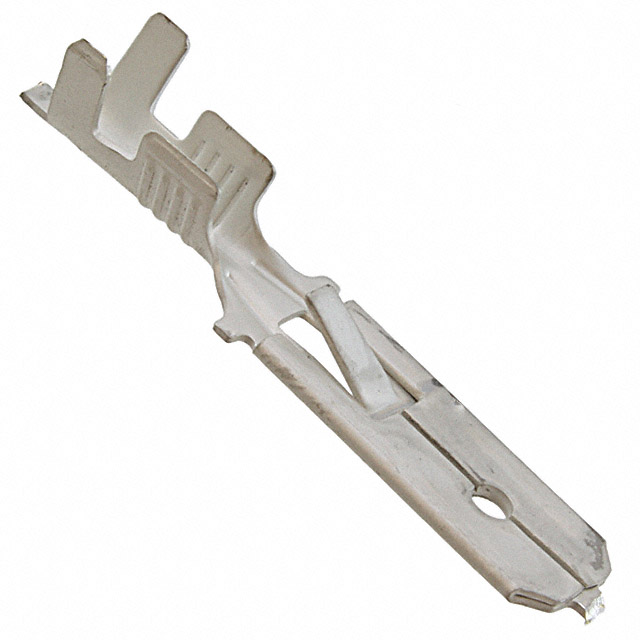

CONN QC TAB 13-17AWG 0.250 CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
928962-2 - 928962-2

928962-2

Active
TE Connectivity AMP Connectors

CONN QC TAB 13-17AWG 0.250 CRIMP

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification928962-2928962 Series
Contact FinishTinTin
Contact MaterialBrassBrass, Phosphor Bronze
GenderMaleMale
InsulationNon-InsulatedNon-Insulated
Insulation Diameter [Max] [diameter]0.114 in0.114 in
Insulation Diameter [Max] [diameter]2.9 mm2.9 mm
Insulation Diameter [Min] [diameter]2.11 mm2.11 mm
Insulation Diameter [Min] [diameter]0.083 "0.083 "
Length - Overall27.89 mm27.89 mm
Length - Overall [x]1.098 "1.098 "
Mounting TypeFree Hanging (In-Line)Free Hanging (In-Line)
Tab Length15.7 mm15.7 mm
Tab Length0.618 in0.618 in
Tab Thickness0.032 in0.032 in
Tab Thickness0.81 mm0.81 mm
Tab Width6.35 mm6.35 mm
Tab Width0.25 in0.25 in
Terminal TypeStandardStandard
TerminationCrimpCrimp
Wire Gauge [Max]17 AWG17 AWG
Wire Gauge [Min]13 AWG13 AWG

928962 Series

CONN QC TAB 13-17AWG 0.250 CRIMP

PartTab ThicknessTab ThicknessContact MaterialLength - Overall [x]Length - OverallTerminal TypeGenderContact FinishTab WidthTab WidthWire Gauge [Min]Wire Gauge [Max]TerminationMounting TypeTab LengthTab LengthInsulation Diameter [Min] [diameter]Insulation Diameter [Min] [diameter]Insulation Diameter [Max] [diameter]Insulation Diameter [Max] [diameter]Insulation
TE Connectivity AMP Connectors
928962-7
0.032 in
0.81 mm
Brass
1.098 "
27.89 mm
Standard
Male
Tin
6.35 mm
0.25 in
13 AWG
17 AWG
Crimp
Free Hanging (In-Line)
15.7 mm
0.618 in
2.11 mm
0.083 "
0.114 in
2.9 mm
Non-Insulated
TE Connectivity AMP Connectors
928962-1
0.032 in
0.81 mm
Brass
1.098 "
27.89 mm
Standard
Male
6.35 mm
0.25 in
13 AWG
17 AWG
Crimp
Free Hanging (In-Line)
15.7 mm
0.618 in
2.11 mm
0.083 "
0.114 in
2.9 mm
Non-Insulated
TE Connectivity AMP Connectors
928962-2
0.032 in
0.81 mm
Brass
1.098 "
27.89 mm
Standard
Male
Tin
6.35 mm
0.25 in
13 AWG
17 AWG
Crimp
Free Hanging (In-Line)
15.7 mm
0.618 in
2.11 mm
0.083 "
0.114 in
2.9 mm
Non-Insulated
TE Connectivity AMP Connectors
928962-4
0.032 in
0.81 mm
Phosphor Bronze
1.098 "
27.89 mm
Standard
Male
Tin
6.35 mm
0.25 in
13 AWG
17 AWG
Crimp
Free Hanging (In-Line)
15.7 mm
0.618 in
2.11 mm
0.083 "
0.114 in
2.9 mm
Non-Insulated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.39
10$ 0.33
25$ 0.31
50$ 0.29
100$ 0.28
250$ 0.26
500$ 0.25
1000$ 0.24
Tape & Reel (TR) 3000$ 0.22
6000$ 0.21
9000$ 0.20
15000$ 0.20
21000$ 0.19
30000$ 0.19

Description

General part information

928962 Series

0.250" (6.35mm) Quick Connect Male 13-17 AWG Crimp Connector Non-Insulated
