928962-4

Active

TE Connectivity AMP Connectors

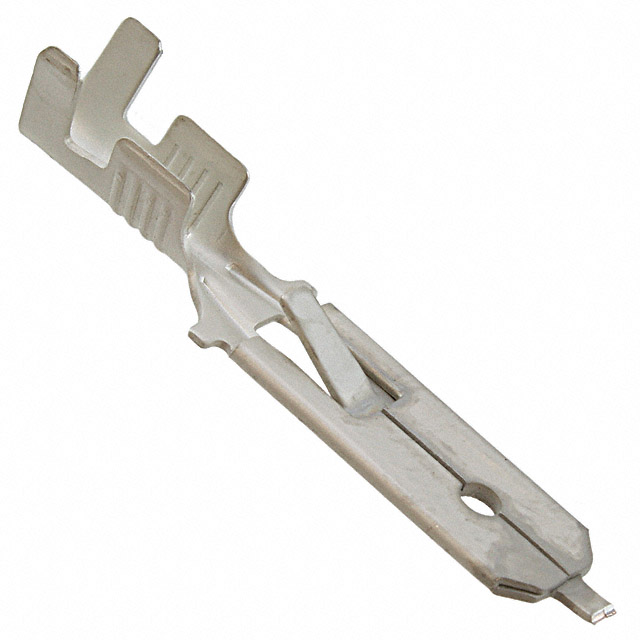

CONN QC TAB 13-17AWG 0.250 CRIMP

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QC TAB 13-17AWG 0.250 CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	928962-4	928962 Series

Contact Finish	Tin	Tin
Contact Material	Phosphor Bronze	Brass, Phosphor Bronze
Gender	Male	Male
Insulation	Non-Insulated	Non-Insulated
Insulation Diameter [Max] [diameter]	0.114 in	0.114 in
Insulation Diameter [Max] [diameter]	2.9 mm	2.9 mm
Insulation Diameter [Min] [diameter]	2.11 mm	2.11 mm
Insulation Diameter [Min] [diameter]	0.083 "	0.083 "
Length - Overall	27.89 mm	27.89 mm
Length - Overall [x]	1.098 "	1.098 "
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Tab Length	15.7 mm	15.7 mm
Tab Length	0.618 in	0.618 in
Tab Thickness	0.032 in	0.032 in
Tab Thickness	0.81 mm	0.81 mm
Tab Width	6.35 mm	6.35 mm
Tab Width	0.25 in	0.25 in
Terminal Type	Standard	Standard
Termination	Crimp	Crimp
Wire Gauge [Max]	17 AWG	17 AWG
Wire Gauge [Min]	13 AWG	13 AWG

CONN QC TAB 13-17AWG 0.250 CRIMP

Part	Tab Thickness	Tab Thickness	Contact Material	Length - Overall [x]	Length - Overall	Terminal Type	Gender	Contact Finish	Tab Width	Tab Width	Wire Gauge [Min]	Wire Gauge [Max]	Termination	Mounting Type	Tab Length	Tab Length	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation
TE Connectivity AMP Connectors 928962-7	0.032 in	0.81 mm	Brass	1.098 "	27.89 mm	Standard	Male	Tin	6.35 mm	0.25 in	13 AWG	17 AWG	Crimp	Free Hanging (In-Line)	15.7 mm	0.618 in	2.11 mm	0.083 "	0.114 in	2.9 mm	Non-Insulated
TE Connectivity AMP Connectors 928962-1	0.032 in	0.81 mm	Brass	1.098 "	27.89 mm	Standard	Male		6.35 mm	0.25 in	13 AWG	17 AWG	Crimp	Free Hanging (In-Line)	15.7 mm	0.618 in	2.11 mm	0.083 "	0.114 in	2.9 mm	Non-Insulated
TE Connectivity AMP Connectors 928962-2	0.032 in	0.81 mm	Brass	1.098 "	27.89 mm	Standard	Male	Tin	6.35 mm	0.25 in	13 AWG	17 AWG	Crimp	Free Hanging (In-Line)	15.7 mm	0.618 in	2.11 mm	0.083 "	0.114 in	2.9 mm	Non-Insulated
TE Connectivity AMP Connectors 928962-4	0.032 in	0.81 mm	Phosphor Bronze	1.098 "	27.89 mm	Standard	Male	Tin	6.35 mm	0.25 in	13 AWG	17 AWG	Crimp	Free Hanging (In-Line)	15.7 mm	0.618 in	2.11 mm	0.083 "	0.114 in	2.9 mm	Non-Insulated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.250" (6.35mm) Quick Connect Male 13-17 AWG Crimp Connector Non-Insulated
