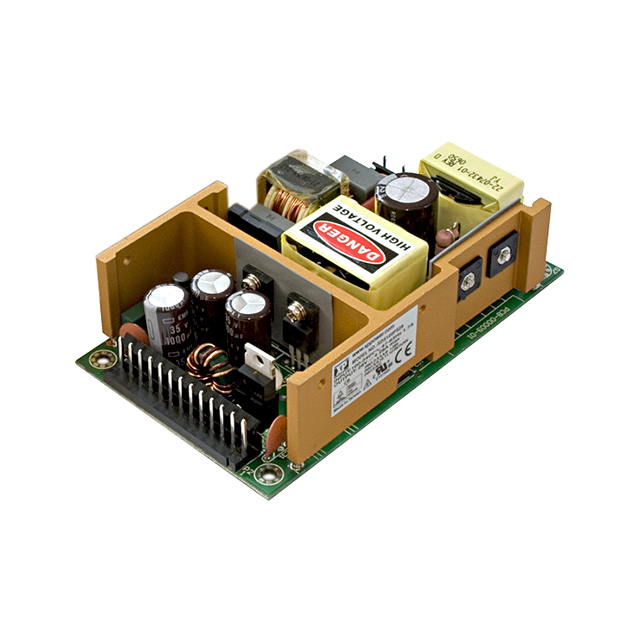

SDS150PS18B

Obsolete

XP Power

AC/DC CONVERTER 18V 150W

Search across all available documentation for this part.

Obsolete

XP Power

AC/DC CONVERTER 18V 150W

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC CONVERTER 18V 150W

Part	Current - Output 1	Approval Agency	Number of Outputs	Voltage - Isolation	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Power (Watts)	Type	Efficiency	Operating Temperature [Max]	Standard Number	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]
XP Power SDS150PS18B	8.33 A	cUL	1	3000 V	ITE (Commercial)	90 VAC	264 VAC	18 V	150 W	Open Frame	88 %	70 °C	62368-1	Chassis Mount	127 mm	3 "	1.4 "	5 in	76.2 mm	35.6 mm
XP Power SDS150PS15B	10 A	cUL	1	3000 V	ITE (Commercial)	90 VAC	264 VAC	15 V	150 W	Open Frame	88 %	70 °C	62368-1	Chassis Mount	127 mm	3 "	1.4 "	5 in	76.2 mm	35.6 mm
XP Power SDS150PS12B	12.5 A	cUL	1	3000 V	ITE (Commercial)	90 VAC	264 VAC	12 V	150 W	Open Frame	88 %	70 °C	62368-1	Chassis Mount	127 mm	3 "	1.4 "	5 in	76.2 mm	35.6 mm
XP Power SDS150PS48B	3.13 A	cUL	1	3000 V	ITE (Commercial)	90 VAC	264 VAC	48 V	150 W	Open Frame	88 %	70 °C	62368-1	Chassis Mount	127 mm	3 "	1.4 "	5 in	76.2 mm	35.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 18V 90 ~ 264 VAC Input

Technical documentation and resources
