W6282-2SG-P-3DC

Active

Conxall/Switchcraft

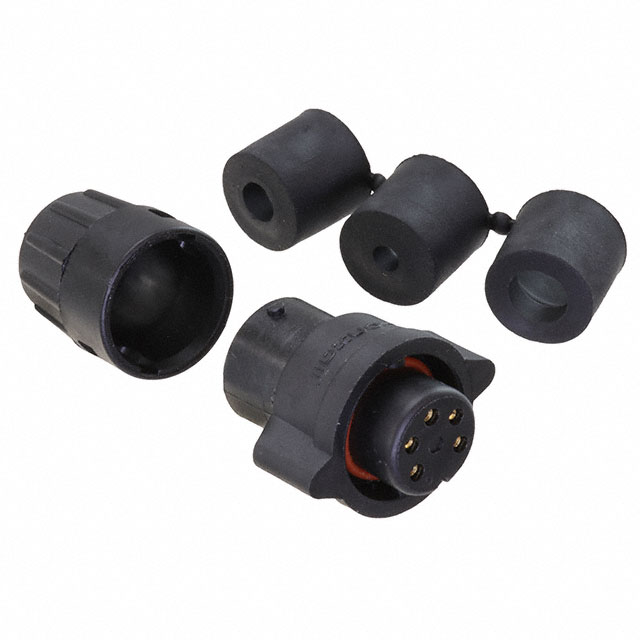

CONN PLUG FMALE 2POS SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

W6282-2SG-P-3DC

Active

Conxall/Switchcraft

CONN PLUG FMALE 2POS SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	W6282-2SG-P-3DC	W6282-2 Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	6.6 - 7.11 mm
Cable Opening	-	0.26 - 0.28 in
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Coupling Nut, UV Resistant, Backshell	Coupling Nut, UV Resistant, Backshell
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Thermoplastic	Thermoplastic
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	300 VAC	300 VAC

W6282-2 Series

CONN PLUG FMALE 2POS SOLDER CUP

Part	Color	Shielding	Voltage Rating	Connector Type	Current Rating (Amps)	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Fastening Type	Contact Material	Backshell Material, Plating	Features	Primary Material	Contact Finish - Mating	Mounting Type	Orientation	Ingress Protection	Applications	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft W6282-2SG-P-3DC	Black	Unshielded	300 VAC	Female Sockets, Plug	Varies by Wire Gauge	Thermoplastic	85 °C	-40 °C	2	Bayonet Lock	Copper Alloy	Thermoplastic	Backshell, Coupling Nut, UV Resistant	Plastic	Gold	Free Hanging (In-Line)	Keyed	IP66, IP67, IP68	Automotive, Communication Systems, Instrumentation
Conxall/Switchcraft W6282-2SG-P-528	Black	Unshielded	300 VAC	Female Sockets, Plug	Varies by Wire Gauge	Thermoplastic	85 °C	-40 °C	2	Bayonet Lock	Copper Alloy	Thermoplastic	Backshell, Coupling Nut, UV Resistant	Plastic	Gold	Free Hanging (In-Line)	Keyed	IP66, IP67, IP68	Automotive, Communication Systems, Instrumentation	6.6 mm, 7.11 mm	0.26 in, 0.28 in
Conxall/Switchcraft W6282-2PG-P-528	Black	Unshielded	300 VAC	Male Pins, Plug	Varies by Wire Gauge	Thermoplastic	85 °C	-40 °C	2	Bayonet Lock	Copper Alloy	Thermoplastic	Backshell, Coupling Nut, UV Resistant	Plastic	Gold	Free Hanging (In-Line)	Keyed	IP66, IP67, IP68	Automotive, Communication Systems, Instrumentation	6.6 mm, 7.11 mm	0.26 in, 0.28 in
Conxall/Switchcraft W6282-2PG-P-3DC	Black	Unshielded	300 VAC	Male Pins, Plug	Varies by Wire Gauge	Thermoplastic	85 °C	-40 °C	2	Bayonet Lock	Copper Alloy	Thermoplastic	Backshell, Coupling Nut, UV Resistant	Plastic	Gold	Free Hanging (In-Line)	Keyed	IP66, IP67, IP68	Automotive, Communication Systems, Instrumentation

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 13.46

Description

General part information

W6282-2 Series

2 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources
