5503UE 0081000
ActiveBelden Inc.

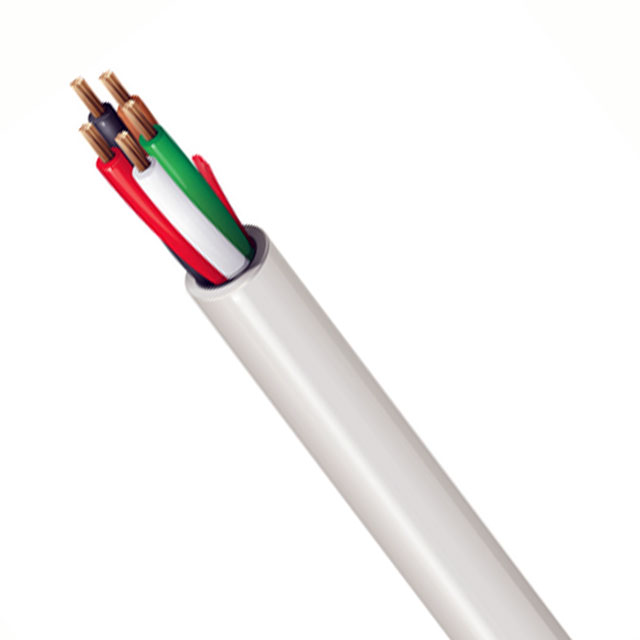

CABLE 5COND 22AWG GRAY 1000'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5503UE 0081000
ActiveBelden Inc.
CABLE 5COND 22AWG GRAY 1000'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5503UE 0081000 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Features | Rip Cord |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC), Riser |
| Jacket (Insulation) Thickness | 0.015 in |
| Jacket (Insulation) Thickness | 0.381 mm |
| Jacket Color | Gray |
| Length | 15.24 m, 304.8 m |
| Length | 1000 ft |
| Length [x] | 50 ft |
| Number of Conductors | 5 |
| Ratings | UL Style CMR |
| Usage | Sound, Security, Alarm |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.06 | |
| 5 | $ 21.32 | |||
| 10 | $ 16.59 | |||
| 25 | $ 14.22 | |||
| 50 | $ 13.27 | |||
| 100 | $ 12.32 | |||
| Spool | 1 | $ 304.65 | ||
| 3 | $ 281.84 | |||
| 5 | $ 272.06 | |||
| 7 | $ 265.55 | |||
| 10 | $ 259.03 | |||
Description
General part information
5503UE Series
5 Conductor Multi-Conductor Cable Gray 22 AWG 1000.0' (304.8m)
