Q-2D03T000R.75M
ActiveAmphenol Custom Cable
COAX CBL SMB TO N-TYPE 29.5"
Deep-Dive with AI
Search across all available documentation for this part.
Q-2D03T000R.75M
ActiveAmphenol Custom Cable
COAX CBL SMB TO N-TYPE 29.5"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-2D03T000R.75M |
|---|---|
| 1st Connector | Right Angle, SMB Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | RG-316 DB |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 4 GHz |
| Length | 29.53 " |
| Length | 750 mm |
| Overall Impedance | 50 Ohms |
| Style | SMB to N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 189.64 | |
| 25 | $ 185.94 | |||
| 50 | $ 182.24 | |||
| 100 | $ 178.54 | |||
| 250 | $ 174.83 | |||
Description
General part information
Q-2D03T0 Series

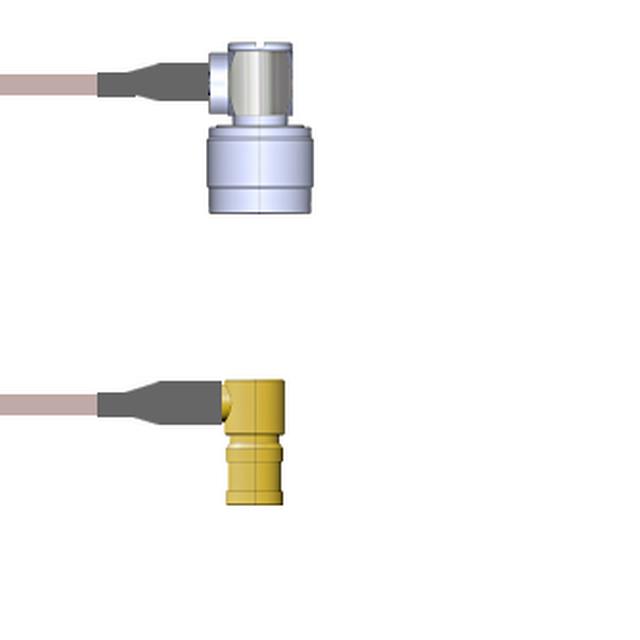

Cable Assembly Coaxial SMB to N-Type RG-316 DB 29.53" (750.00mm)
Documents
Technical documentation and resources
No documents available
