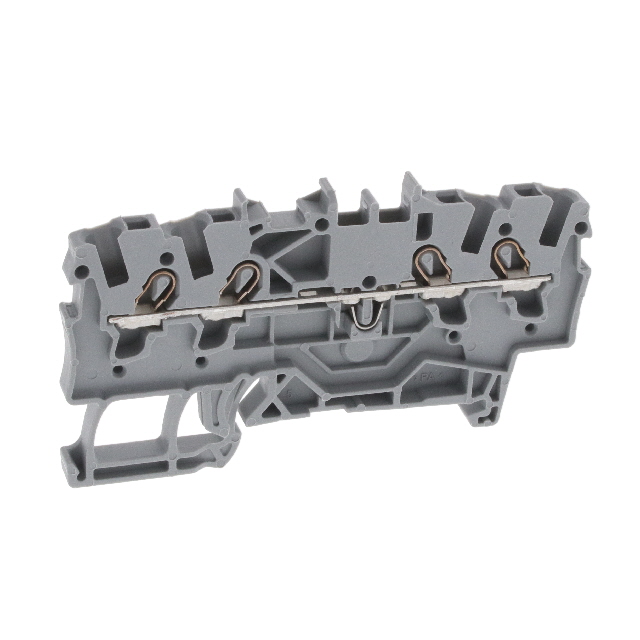

2001-1401

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 4 POSITIONS, 22 AWG, 14 AWG, 2.5 MM², CLAMP, 18 A

Search across all available documentation for this part.

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 4 POSITIONS, 22 AWG, 14 AWG, 2.5 MM², CLAMP, 18 A

Technical Specifications

Parameters and characteristics commom to parts in this series

DIN RAIL MOUNT TERMINAL BLOCK, 4 POSITIONS, 22 AWG, 14 AWG, 1.5 MM², CLAMP, 18 A

Part	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Terminal - Width [y]	Voltage - IEC	Color	Current - IEC	Voltage - UL	Termination Style	Number of Positions	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Material - Insulation	Stripping Length [Min]	Stripping Length [Max]	Type	Number of Levels
WAGO Corporation 2001-1404	18 AWG	14 AWG	4.2 mm	800 V	Blue	24 A	600 V	Push In, Spring	4	0.75 mm²	2.5 mm²	Polyamide (PA66), Nylon 6/6	9 mm	11 mm	Feed Through	1
WAGO Corporation 2001-1401	18 AWG	14 AWG	4.2 mm	800 V	Gray	24 A	600 V	Push In, Spring	4	0.75 mm²	2.5 mm²	Polyamide (PA66), Nylon 6/6	9 mm	11 mm	Feed Through	1
WAGO Corporation 2001-1407	18 AWG	14 AWG	4.2 mm		Green, Yellow			Push In, Spring	4	0.75 mm²	2.5 mm²	Polyamide (PA66), Nylon 6/6	9 mm	11 mm	Ground, Earth	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Block Connector 4 Position Feed Through Gray 14-18 AWG
