M7NXK-1510J

Active

D-SUB CABLE - MML15K/MC16G/X

Search across all available documentation for this part.

Active

D-SUB CABLE - MML15K/MC16G/X

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

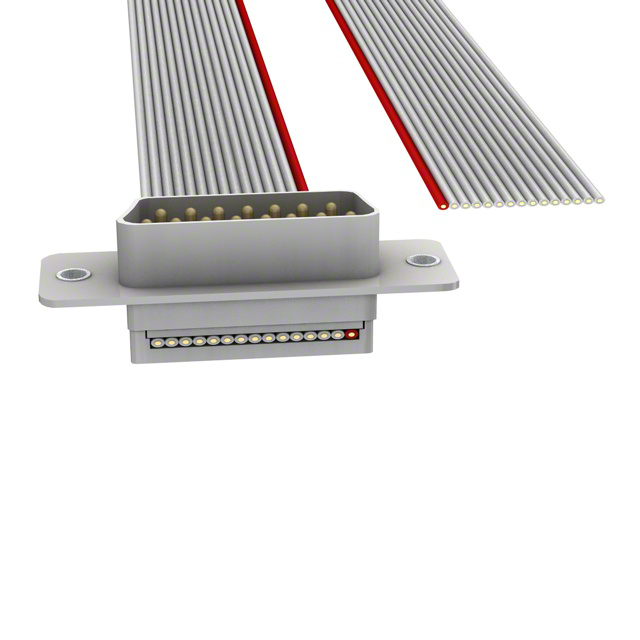

D-Sub Cable Assembly DB15 Gray, Ribbon 10.00' (3.05m) Plug, Male Pins to Individual Wire Leads Unshielded

Technical documentation and resources

Part	Contact Finish	Shielding	Type	1st Connector	Length	Length	2nd Connector	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Color
3M M7NXK-1510J	Gold	Unshielded	DB15	Plug, Male Pins	10 ft	3.05 m	Individual Wire Leads	15	0.76 Ám	30 Áin
3M M7NXK-0910J	Gold	Unshielded	DB9	Plug, Male Pins	10 ft	3.05 m	Individual Wire Leads	9	0.76 Ám	30 Áin
3M M7NXK-2506R	Gold	Unshielded	DB25	Plug, Male Pins	6 ft	1.83 m	Individual Wire Leads		0.76 Ám	30 Áin	Multiple, Ribbon
3M M7NXK-2510J	Gold	Unshielded	DB25	Plug, Male Pins	10 ft	3.05 m	Individual Wire Leads		0.76 Ám	30 Áin
3M M7NXK-1506R	Gold	Unshielded	DB15	Plug, Male Pins	6 ft	1.83 m	Individual Wire Leads	15	0.76 Ám	30 Áin	Multiple, Ribbon
3M M7NXK-2506J	Gold	Unshielded	DB25	Plug, Male Pins	6 ft	1.83 m	Individual Wire Leads		0.76 Ám	30 Áin
3M M7NXK-3710J	Gold	Unshielded	DB37	Plug, Male Pins	10 ft	3.05 m	Individual Wire Leads	37	0.76 Ám	30 Áin
3M M7NXK-3706J	Gold	Unshielded	DB37	Plug, Male Pins	6 ft	1.83 m	Individual Wire Leads	37	0.76 Ám	30 Áin
3M M7NXK-3706R	Gold	Unshielded	DB37	Plug, Male Pins	6 ft	1.83 m	Individual Wire Leads	37	0.76 Ám	30 Áin	Multiple, Ribbon
3M M7NXK-0906J	Gold	Unshielded	DB9	Plug, Male Pins	6 ft	1.83 m	Individual Wire Leads	9	0.76 Ám	30 Áin
