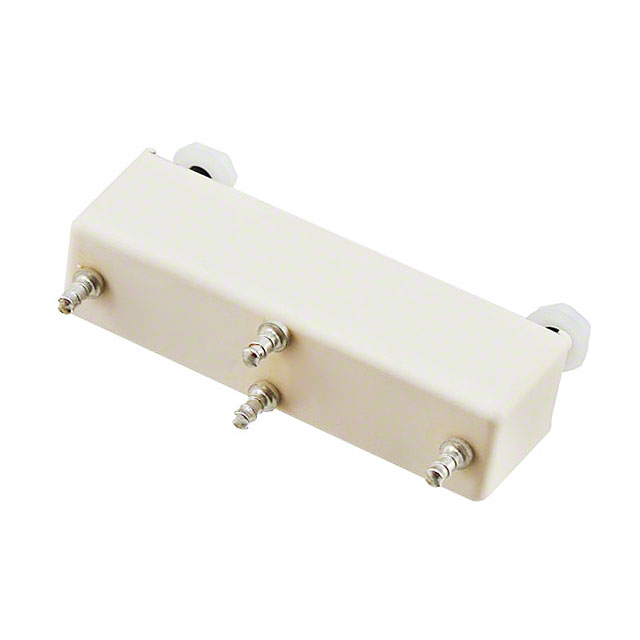

DAT71210P

Active

Sensata Technologies

RELAY REED SPST-NO 2A 12V

Search across all available documentation for this part.

Active

Sensata Technologies

RELAY REED SPST-NO 2A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY REED SPST-NO 2A 12V

Technical documentation and resources

No documents available

Part	Termination Style	Must Release Voltage	Coil Type	Operating Temperature [Min]	Operating Temperature [Max]	Operate Time	Contact Rating (Current)	Release Time	Coil Current	Contact Form	Coil Resistance	Mounting Type	Switching Voltage [Max]	Coil Voltage	Must Operate Voltage	Contact Material
Sensata Technologies DAT71210P	Solder Turret	1.25 VDC	Non Latching	-20 C	70 °C	3 ms	2 A	2 ms	80 mA	SPST-NO (1 Form A)	150 Ohms	Chassis Mount	7000 VAC, 7000 VDC	12 VDC	9 VDC	Tungsten (W)
Sensata Technologies DAT71210PU	Solder Turret	1.25 VDC	Non Latching	-20 C	70 °C	3 ms	2 A	2 ms	80 mA	SPST-NO (1 Form A)	150 Ohms	Chassis Mount	7000 VAC, 7000 VDC	12 VDC	9 VDC	Tungsten (W)
