M52-5000745

Active

Harwin Inc.

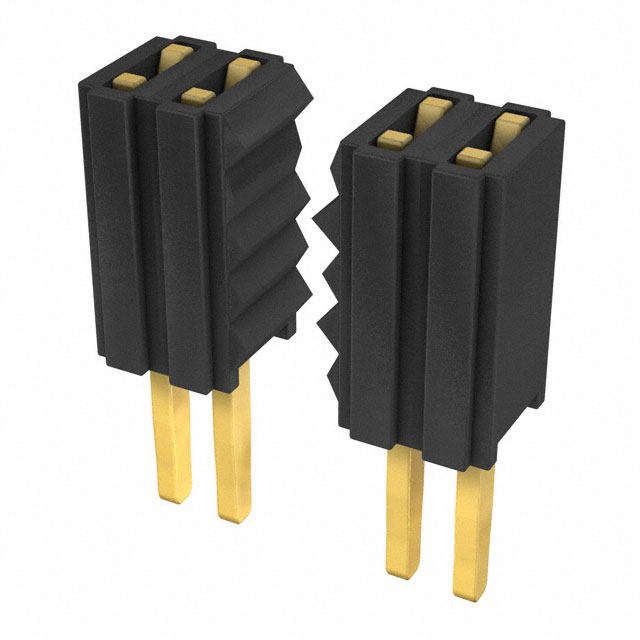

7 POS. FEMALE SIL VERTICAL THROUGHBOARD CONN. ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM50-3000345 M50-3530842 +2

M52-5000745

Active

Harwin Inc.

7 POS. FEMALE SIL VERTICAL THROUGHBOARD CONN. ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM50-3000345 M50-3530842 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M52-5000745

Applications	General Purpose, Medical, Telecommunications
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.6 mm
Insulation Height	0.181 in
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mated Stacking Heights	8.37 mm, 7.1 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Termination	Solder

M52-500 Series

Part	Contact Length - Post	Contact Length - Post	Contact Shape	Insulation Material	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Termination	Connector Type	Contact Type	Number of Positions	Applications	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Material	Mated Stacking Heights	Insulation Color	Fastening Type	Mounting Type	Contact Finish - Post	Number of Rows	Contact Finish - Mating	Number of Positions
Harwin Inc. M52-5000945	0.118 in	3 mm	Rectangular	Nylon 6T Polyamide (PA6T)	0.05 in	1.27 mm	UL94 V-0	Solder	Receptacle	Forked	9	General Purpose Medical Telecommunications	4.6 mm	0.181 in	-40 °C	105 ░C	All	Phosphor Bronze	7.1 mm 8.37 mm	Black	Push-Pull	Through Hole	Gold	1	Gold
Harwin Inc. M52-5000745	0.118 in	3 mm	Rectangular	Nylon 6T Polyamide (PA6T)	0.05 in	1.27 mm	UL94 V-0	Solder	Receptacle	Forked	7	General Purpose Medical Telecommunications	4.6 mm	0.181 in	-40 °C	105 ░C	All	Phosphor Bronze	7.1 mm 8.37 mm	Black	Push-Pull	Through Hole	Gold	1	Gold
Harwin Inc. M52-5002545	0.118 in	3 mm	Rectangular	Nylon 6T Polyamide (PA6T)	0.05 in	1.27 mm	UL94 V-0	Solder	Receptacle	Forked		General Purpose Medical Telecommunications	4.6 mm	0.181 in	-40 °C	105 ░C	All	Phosphor Bronze	7.1 mm 8.37 mm	Black	Push-Pull	Through Hole	Gold	1	Gold
Harwin Inc. M52-5001545	0.118 in	3 mm	Rectangular	Nylon 6T Polyamide (PA6T)	0.05 in	1.27 mm	UL94 V-0	Solder	Receptacle	Forked	15	General Purpose Medical Telecommunications	4.6 mm	0.181 in	-40 °C	105 ░C	All	Phosphor Bronze	7.1 mm 8.37 mm	Black	Push-Pull	Through Hole	Gold	1	Gold
Harwin Inc. M52-5001645	0.118 in	3 mm	Rectangular	Nylon 6T Polyamide (PA6T)	0.05 in	1.27 mm	UL94 V-0	Solder	Receptacle	Forked		General Purpose Medical Telecommunications	4.6 mm	0.181 in	-40 °C	105 ░C	All	Phosphor Bronze	7.1 mm 8.37 mm	Black	Push-Pull	Through Hole	Gold	1	Gold	16
Harwin Inc. M52-5004045	0.118 in	3 mm	Rectangular	Nylon 6T Polyamide (PA6T)	0.05 in	1.27 mm	UL94 V-0	Solder	Receptacle	Forked	40	General Purpose Medical Telecommunications	4.6 mm	0.181 in	-40 °C	105 ░C	All	Phosphor Bronze	7.1 mm 8.37 mm	Black	Push-Pull	Through Hole	Gold	1	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.21
		62	$ 0.96
		124	$ 0.92
		558	$ 0.75
		1054	$ 0.67
		5022	$ 0.58
		10044	$ 0.55
Newark	Each	500	$ 0.76
		1000	$ 0.68

Description

General part information

M52-500 Series

7 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold

Documents

Technical documentation and resources

M50-3000345

M50-3530842

Datasheet

M50,M52 Series Spec Sheet

Datasheet
