150208-6002-TB

Active

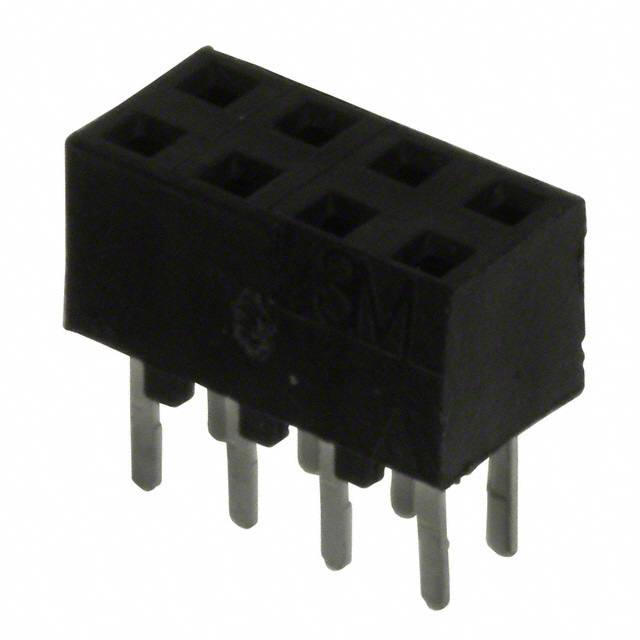

CONN RCPT 8POS 0.079 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

150208-6002-TB

Active

CONN RCPT 8POS 0.079 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	150208-6002-TB	150208 Series

Connector Type	Receptacle	Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	15 - 30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.38 - 0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Post	2.54 mm	2.54 mm
Contact Length - Post	0.1 in	0.1 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Features	-	Pick and Place
Insulation Color	Black	Black
Insulation Height	0.177 in	0.177 - 0.183 in
Insulation Height	4.5 mm	4.5 - 4.65 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Surface Mount
Number of Positions	8	8
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	500 V	500 V

150208 Series

CONN RCPT 8POS 0.079 GOLD PCB

Part	Number of Positions	Material Flammability Rating	Contact Type	Number of Rows	Contact Finish - Post	Connector Type	Fastening Type	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Termination	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Voltage Rating	Style	Operating Temperature [Max]	Operating Temperature [Min]	Features
3M 150208-6002-RB	8	UL94 V-0	Female Socket	2	Tin	Receptacle	Push-Pull	All	0.177 in	4.5 mm	Square	0.079 in	2 mm	Gold	2.54 mm	0.1 in	0.079 in	2 mm	Black	200 µin	5.08 µm	Copper Alloy	Solder	Through Hole	30 Áin	0.76 Ám	Thermoplastic	500 V	Board to Board, Cable	105 ░C	-55 °C
3M 150208-6002-TH	8	UL94 V-0	Female Socket	2	Tin	Receptacle	Push-Pull	All	0.177 in	4.5 mm	Square	0.079 in	2 mm	Gold	2.54 mm	0.1 in	0.079 in	2 mm	Black	200 µin	5.08 µm	Copper Alloy	Solder	Through Hole	15 µin	0.38 µm	Thermoplastic	500 V	Board to Board, Cable	105 ░C	-55 °C
3M 150208-2000-RB	8	UL94 V-0	Female Socket	2	Tin	Receptacle	Push-Pull	All	0.183 in	4.65 mm	Square	0.079 in	2 mm	Gold			0.079 in	2 mm	Black	200 µin	5.08 µm	Copper Alloy	Solder	Surface Mount	30 Áin	0.76 Ám	Thermoplastic	500 V	Board to Board, Cable	105 ░C	-55 °C
3M 150208-2000-RB-WB	8	UL94 V-0	Female Socket	2	Tin	Receptacle	Push-Pull	All	0.183 in	4.65 mm	Square	0.079 in	2 mm	Gold			0.079 in	2 mm	Black	200 µin	5.08 µm	Copper Alloy	Solder	Surface Mount	30 Áin	0.76 Ám	Thermoplastic	500 V	Board to Board, Cable	105 ░C	-55 °C	Pick and Place
3M 150208-6002-TB	8	UL94 V-0	Female Socket	2	Tin-Lead	Receptacle	Push-Pull	All	0.177 in	4.5 mm	Square	0.079 in	2 mm	Gold	2.54 mm	0.1 in	0.079 in	2 mm	Black	200 µin	5.08 µm	Copper Alloy	Solder	Through Hole	30 Áin	0.76 Ám	Thermoplastic	500 V	Board to Board, Cable	105 ░C	-55 °C
