150208-2000-RB

Active

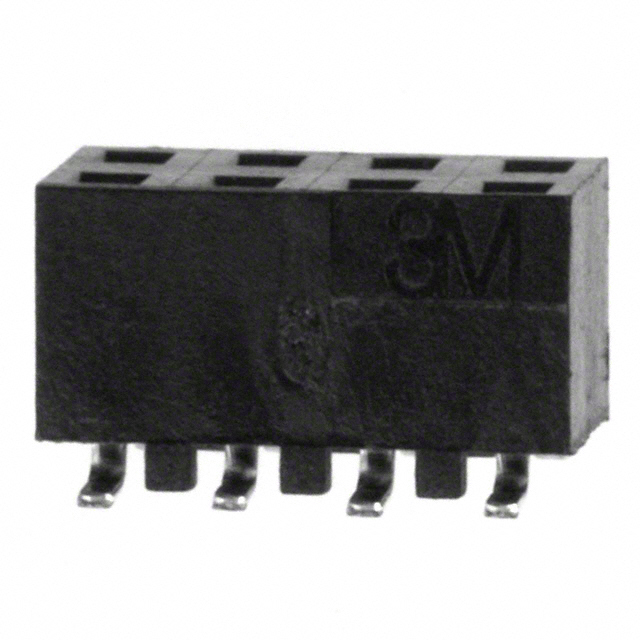

CONN RCPT 8POS 0.079 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

150208-2000-RB

Active

CONN RCPT 8POS 0.079 GOLD SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

150208 Series

8 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	150208-2000-RB	150208 Series

Connector Type	Receptacle	Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	15 - 30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.38 - 0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Post	-	2.54 mm
Contact Length - Post	-	0.1 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Features	-	Pick and Place
Insulation Color	Black	Black
Insulation Height	4.65 mm	4.5 - 4.65 mm
Insulation Height	0.183 in	0.177 - 0.183 in
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Through Hole, Surface Mount
Number of Positions	8	8
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	500 V	500 V

150208 Series

CONN RCPT 8POS 0.079 GOLD PCB

Part	Number of Positions	Material Flammability Rating	Contact Type	Number of Rows	Contact Finish - Post	Connector Type	Fastening Type	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Termination	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Voltage Rating	Style	Operating Temperature [Max]	Operating Temperature [Min]	Features
3M 150208-6002-RB	8	UL94 V-0	Female Socket	2	Tin	Receptacle	Push-Pull	All	0.177 in	4.5 mm	Square	0.079 in	2 mm	Gold	2.54 mm	0.1 in	0.079 in	2 mm	Black	200 µin	5.08 µm	Copper Alloy	Solder	Through Hole	30 Áin	0.76 Ám	Thermoplastic	500 V	Board to Board, Cable	105 ░C	-55 °C
3M 150208-6002-TH	8	UL94 V-0	Female Socket	2	Tin	Receptacle	Push-Pull	All	0.177 in	4.5 mm	Square	0.079 in	2 mm	Gold	2.54 mm	0.1 in	0.079 in	2 mm	Black	200 µin	5.08 µm	Copper Alloy	Solder	Through Hole	15 µin	0.38 µm	Thermoplastic	500 V	Board to Board, Cable	105 ░C	-55 °C
3M 150208-2000-RB	8	UL94 V-0	Female Socket	2	Tin	Receptacle	Push-Pull	All	0.183 in	4.65 mm	Square	0.079 in	2 mm	Gold			0.079 in	2 mm	Black	200 µin	5.08 µm	Copper Alloy	Solder	Surface Mount	30 Áin	0.76 Ám	Thermoplastic	500 V	Board to Board, Cable	105 ░C	-55 °C
3M 150208-2000-RB-WB	8	UL94 V-0	Female Socket	2	Tin	Receptacle	Push-Pull	All	0.183 in	4.65 mm	Square	0.079 in	2 mm	Gold			0.079 in	2 mm	Black	200 µin	5.08 µm	Copper Alloy	Solder	Surface Mount	30 Áin	0.76 Ám	Thermoplastic	500 V	Board to Board, Cable	105 ░C	-55 °C	Pick and Place
