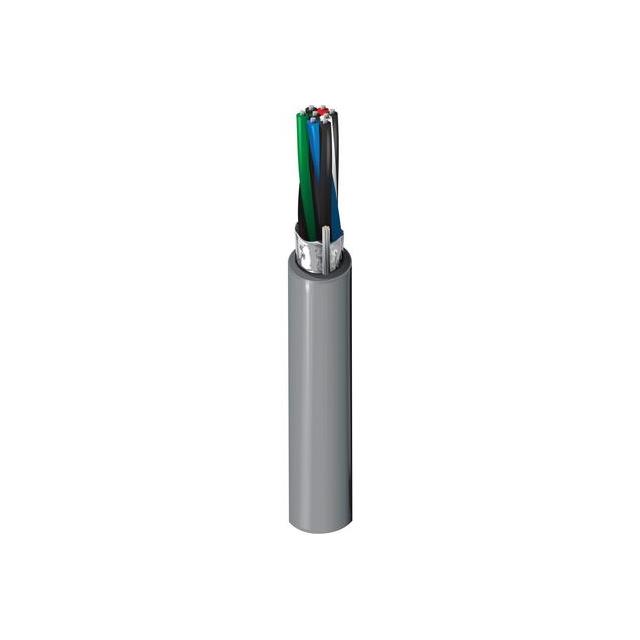

8134FO 060500

Active

Belden Inc.

MULTI-PAIR 8CON 28AWG CHROM

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 8CON 28AWG CHROM

Technical Specifications

Parameters and characteristics for this part

Specification	8134FO 060500

Cable Type	Multi-Pair
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	36 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	6.86 mm
Jacket (Insulation) Diameter [diameter]	0.27 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	8
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2919
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Wire Gauge	28 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Jacket Color	Ratings	Conductor Insulation	Conductor Material	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Shield Coverage	Shield Type	Features	Number of Conductors	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Cable Type	Length [x]	Length [x]	Length	Length
Belden Inc. 8134FO 060500	6.86 mm	0.27 in	0.889 mm	0.035 in	Computer	Chrome	UL Style 2919	Foam Polyethylene (FPE)	Copper Tinned	28 AWG	36 AWG	7	100 %	Foil	Drain Wire	8	Aluminum	-30 ░C	80 C	Poly-Vinyl Chloride (PVC)	Multi-Pair	500 '	152.4 m
Belden Inc. 8134FO 0601000	6.86 mm	0.27 in	0.889 mm	0.035 in	Computer	Chrome	UL Style 2919	Foam Polyethylene (FPE)	Copper Tinned	28 AWG	36 AWG	7	100 %	Foil	Drain Wire	8	Aluminum	-30 ░C	80 C	Poly-Vinyl Chloride (PVC)	Multi-Pair			1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 3.48

General part information

8 (4 Pair Twisted) Conductor Multi-Pair Cable Chrome 28 AWG Foil 500.0' (152.4m)
