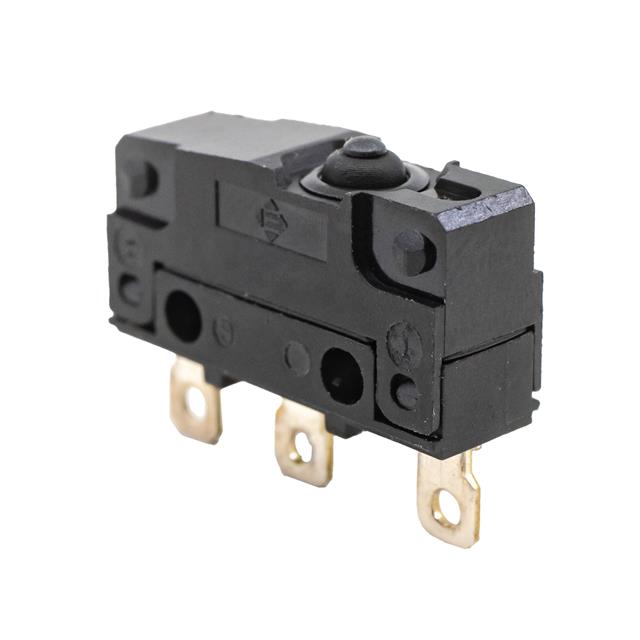

WS20850100F183S1A

Active

E-Switch

SWITCH SNAP ACTION SPDT 2A 250V

Search across all available documentation for this part.

Active

E-Switch

SWITCH SNAP ACTION SPDT 2A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WS20850100F183S1A	WS2085 Series

Actuator Type	Round (Pin Plunger)	Round (Pin Plunger)
Circuit	SPDT	SPDT
Current Rating (Amps)	2 A	2 A
Electrical Life	100000 Cycles	100000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	500000 Cycles	500000 Cycles
Mounting Type	-	Through Hole
Operating Force	183 gf	183 gf
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Switch Function	On-On	On-On
Termination Style	Solder Lug	Solder Lug, PC Pin, Quick Connect - 0.110" (2.8mm)
Voltage Rating - AC	250 V	250 V
Voltage Rating - DC	30 V	30 V

SWITCH SNAP ACTION SPDT 2A 250V

Part	Switch Function	Voltage Rating - DC	Termination Style	Electrical Life	Operating Force	Voltage Rating - AC	Actuator Type	Current Rating (Amps)	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Circuit	Mounting Type
E-Switch WS20850100F183S1A	On-On	30 V	Solder Lug	100000 Cycles	183 gf	250 V	Round (Pin Plunger)	2 A	500000 Cycles	-25 °C	85 °C	IP67 - Dust Tight, Waterproof	SPDT
E-Switch WS20850100F183P1A	On-On	30 V	PC Pin	100000 Cycles	183 gf	250 V	Round (Pin Plunger)	2 A	500000 Cycles	-25 °C	85 °C	IP67 - Dust Tight, Waterproof	SPDT	Through Hole
E-Switch WS20850100F183C1A	On-On	30 V	Quick Connect - 0.110" (2.8mm)	100000 Cycles	183 gf	250 V	Round (Pin Plunger)	2 A	500000 Cycles	-25 °C	85 °C	IP67 - Dust Tight, Waterproof	SPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Panel Mount
