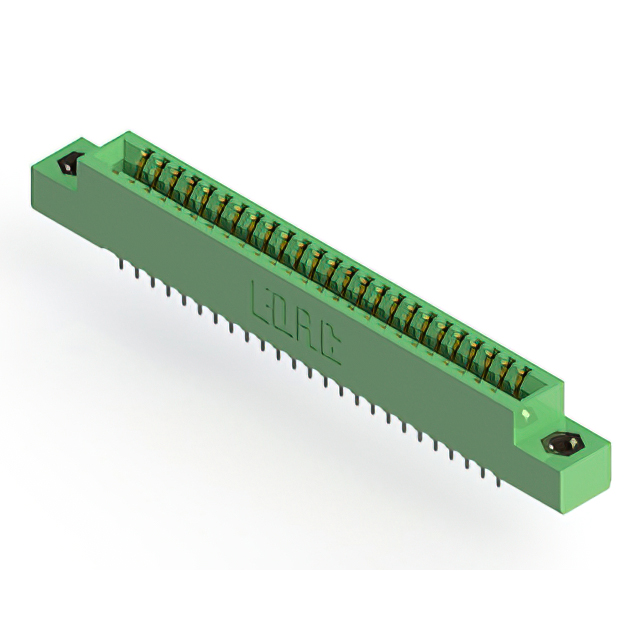

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 50 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

341-050-520-208

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 50 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	341-050-520-208

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	50
Number of Positions/Bay/Row [custom]	25
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

341-050 Series

Part	Color	Termination Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Read Out	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Mounting Type	Flange Feature	Number of Positions/Bay/Row [custom]	Termination	Contact Material	Pitch [x]	Pitch [x]	Gender	Number of Rows	Material - Insulation	Card Type	Contact Finish	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 341-050-500-108	Green	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	10 Áin	0.25 Ám	Semi Bellows	-40 °C	105 ░C	50	Through Hole	4-40 Flush Mount Threaded Insert Top Opening	50	Solder Eyelet(s)	Copper Alloy	2.54 mm	0.1 in	Female	1	Diallyl Phthalate (DAP)	Non Specified - Single Edge	Gold
EDAC Inc. 341-050-522-102	Green	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	10 Áin	0.25 Ám	Semi Bellows	-40 °C	105 ░C	50	Through Hole	Flush Mount Top Opening Unthreaded	50	Solder	Copper Alloy	2.54 mm	0.1 in	Female	1	Polyester Thermoplastic	Non Specified - Single Edge	Gold	3.25 mm	0.128 "
EDAC Inc. 341-050-524-207	Green	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	10 Áin	0.25 Ám	Semi Bellows	-40 °C	105 ░C	50	Through Hole	Flush Mount M3 Threaded Insert Top Opening	25	Solder	Copper Alloy	2.54 mm	0.1 in	Female	2	Polyester Thermoplastic	Non Specified - Dual Edge	Gold
EDAC Inc. 341-050-522-204	Green	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	10 Áin	0.25 Ám	Semi Bellows	-40 °C	105 ░C	50	Through Hole	Flush Mount Top Opening Unthreaded	25	Solder	Copper Alloy	2.54 mm	0.1 in	Female	2	Polyester Thermoplastic	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in
EDAC Inc. 341-050-524-102	Green	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	10 Áin	0.25 Ám	Semi Bellows	-40 °C	105 ░C	50	Through Hole	Flush Mount Top Opening Unthreaded	50	Solder	Copper Alloy	2.54 mm	0.1 in	Female	1	Polyester Thermoplastic	Non Specified - Single Edge	Gold	3.25 mm	0.128 "
EDAC Inc. 341-050-520-201	Green	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	10 Áin	0.25 Ám	Semi Bellows	-40 °C	105 ░C	50	Through Hole		25	Solder	Copper Alloy	2.54 mm	0.1 in	Female	2	Polyester Thermoplastic	Non Specified - Dual Edge	Gold
EDAC Inc. 341-050-522-203	Green	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	10 Áin	0.25 Ám	Semi Bellows	-40 °C	105 ░C	50	Through Hole	Floating Bobbin Flush Mount	25	Solder	Copper Alloy	2.54 mm	0.1 in	Female	2	Polyester Thermoplastic	Non Specified - Dual Edge	Gold	2.95 mm	0.116 in
EDAC Inc. 341-050-524-108	Green	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	10 Áin	0.25 Ám	Semi Bellows	-40 °C	105 ░C	50	Through Hole	4-40 Flush Mount Threaded Insert Top Opening	50	Solder	Copper Alloy	2.54 mm	0.1 in	Female	1	Polyester Thermoplastic	Non Specified - Single Edge	Gold
EDAC Inc. 341-050-500-203	Green	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	10 Áin	0.25 Ám	Semi Bellows	-40 °C	105 ░C	50	Through Hole	Floating Bobbin Flush Mount	25	Solder Eyelet(s)	Copper Alloy	2.54 mm	0.1 in	Female	2	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Gold	2.95 mm	0.116 in
EDAC Inc. 341-050-520-208	Green	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	10 Áin	0.25 Ám	Semi Bellows	-40 °C	105 ░C	50	Through Hole	4-40 Flush Mount Threaded Insert Top Opening	25	Solder	Copper Alloy	2.54 mm	0.1 in	Female	2	Polyester Thermoplastic	Non Specified - Dual Edge	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 14.76
Newark	Each	1	$ 14.82
		100	$ 9.29
		250	$ 8.41
		500	$ 7.17
		1000	$ 5.67

Description

General part information

341-050 Series

50 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
