826950-3

Active

TE Connectivity AMP Connectors

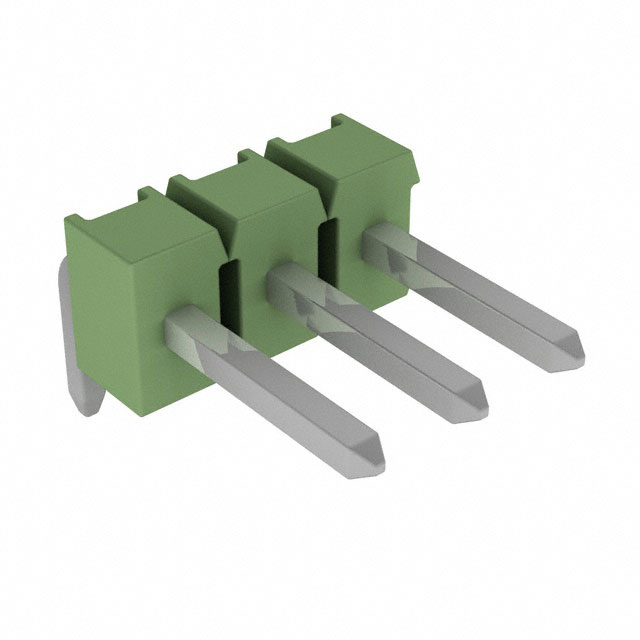

CONN HEADER R/A 3POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 3POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	826950-3

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Mating	0.228 in
Contact Length - Mating	5.8 mm
Contact Length - Post	2.5 mm
Contact Length - Post	0.098 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Insulation Color	Green
Insulation Height	3.05 mm
Insulation Height	0.12 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

CONN HEADER R/A 3POS 2.54MM

Part	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Insulation Material	Mounting Type	Fastening Type	Style	Insulation Color	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Shape	Shrouding	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Termination	Contact Material	Material Flammability Rating	Contact Type	Contact Finish - Post
TE Connectivity AMP Connectors 826950-3	2.5 mm	0.098 in	5 A	Polybutylene Terephthalate (PBT)	Through Hole, Right Angle	Push-Pull	Board to Board, Cable	Green	3.05 mm	0.12 in	-65 ░C	105 ░C	1	Square	Unshrouded	0.228 in	5.8 mm	2 çm	78.7 çin	78.7 µin	2 µm	Breakaway, Header	All	0.1 in	2.54 mm	Solder	Copper Alloy	UL94 V-0	Male Pin	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1500	$ 0.75

General part information

Connector Header Through Hole, Right Angle 3 position 0.100" (2.54mm)
