1.15.106.301/0410

Active

RAFI USA

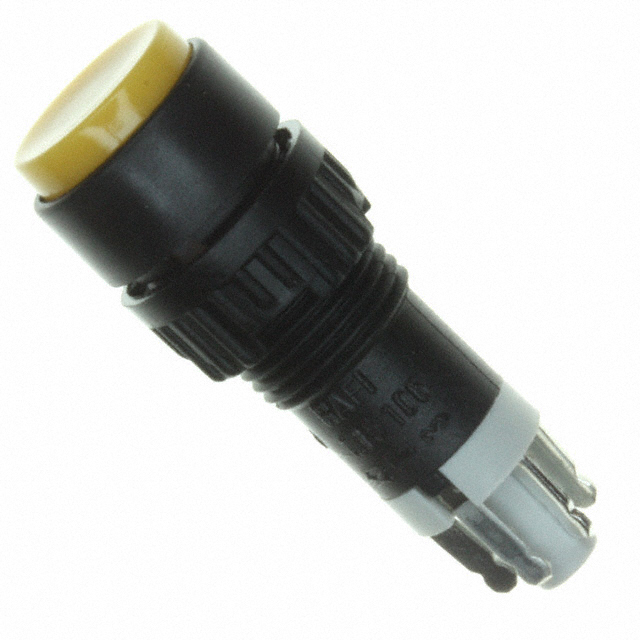

SWITCH PUSH DPST 0.5A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1.15.106.301/0410

Active

RAFI USA

SWITCH PUSH DPST 0.5A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.35
		10	$ 10.66
		25	$ 10.36

Description

General part information

1.15106 Series

Pushbutton Switch DPST-NO/NC Standard Panel Mount, Front

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1.15.106.301/0410	1.15106 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round, Button	Round, Button
Circuit	DPST-NO/NC	DPST-NO/NC
Color - Actuator/Cap	Yellow	Clear, Yellow, Red, Clear (Red Filter/Diffuser), Green, White
Current Rating (Amps)	500 mA	500 mA
Electrical Life	200000 Cycles	200000 Cycles
Illumination Type, Color	-	LED, Green, White, Red, Blue
Illumination Voltage (Nominal)	-	2 VDC
Ingress Protection	IP40	IP40
Mechanical Life	200000 Cycles	200000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	9.1 mm	9.1 mm
Switch Function	Off-Mom, On-Mom	Off-Mom, On-Mom
Termination Style	Solder Lug	Solder Lug
Type	Standard	Illuminated, Standard
Voltage Rating - AC	24 V	24 V
Voltage Rating - DC	24 V	24 V

1.15106 Series

SWITCH PUSH 1NO 1NC 500MA 24V

Part	Current Rating (Amps)	Switch Function	Voltage Rating - DC	Electrical Life	Color - Actuator/Cap	Mechanical Life	Actuator Type	Illumination Voltage (Nominal)	Circuit	Ingress Protection	Mounting Type	Type	Voltage Rating - AC	Illumination Type, Color	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Panel Cutout Dimensions [diameter]
RAFI USA 1.15.106.502/1500	500 mA	Off-Mom, On-Mom	24 V	200000 Cycles	Clear	200000 Cycles	Button, Round	2 VDC	DPST-NO/NC	IP40	Panel Mount, Front	Illuminated, Standard	24 V	Green, LED	No Marking	70 °C	-25 °C	Solder Lug	9.1 mm
RAFI USA 1.15.106.301/0410	500 mA	Off-Mom, On-Mom	24 V	200000 Cycles	Yellow	200000 Cycles	Button, Round		DPST-NO/NC	IP40	Panel Mount, Front	Standard	24 V		No Marking	70 °C	-25 °C	Solder Lug	9.1 mm
RAFI USA 1.15.106.301/0313	500 mA	Off-Mom, On-Mom	24 V	200000 Cycles	Red	200000 Cycles	Button, Round		DPST-NO/NC	IP40	Panel Mount, Front	Standard	24 V		No Marking	70 °C	-25 °C	Solder Lug	9.1 mm
RAFI USA 1.15.106.505/1000	500 mA	Off-Mom, On-Mom	24 V	200000 Cycles	Clear	200000 Cycles	Button, Round	2 VDC	DPST-NO/NC	IP40	Panel Mount, Front	Illuminated, Standard	24 V	LED, White	No Marking	70 °C	-25 °C	Solder Lug	9.1 mm
RAFI USA 1.15.106.501/1300	500 mA	Off-Mom, On-Mom	24 V	200000 Cycles	Clear (Red Filter/Diffuser)	200000 Cycles	Button, Round	2 VDC	DPST-NO/NC	IP40	Panel Mount, Front	Illuminated, Standard	24 V	LED, Red	No Marking	70 °C	-25 °C	Solder Lug	9.1 mm
RAFI USA 1.15.106.301/0518	500 mA	Off-Mom, On-Mom	24 V	200000 Cycles	Green	200000 Cycles	Button, Round		DPST-NO/NC	IP40	Panel Mount, Front	Standard	24 V		No Marking	70 °C	-25 °C	Solder Lug	9.1 mm
RAFI USA 1.15.106.504/1600	500 mA	Off-Mom, On-Mom	24 V	200000 Cycles	Clear	200000 Cycles	Button, Round	2 VDC	DPST-NO/NC	IP40	Panel Mount, Front	Illuminated, Standard	24 V	Blue, LED	No Marking	70 °C	-25 °C	Solder Lug	9.1 mm
RAFI USA 1.15.106.301/0214	500 mA	Off-Mom, On-Mom	24 V	200000 Cycles	White	200000 Cycles	Button, Round		DPST-NO/NC	IP40	Panel Mount, Front	Standard	24 V		No Marking	70 °C	-25 °C	Solder Lug	9.1 mm
