GTVA101K42EV-V1-R250
ActiveMACOM Technology Solutions

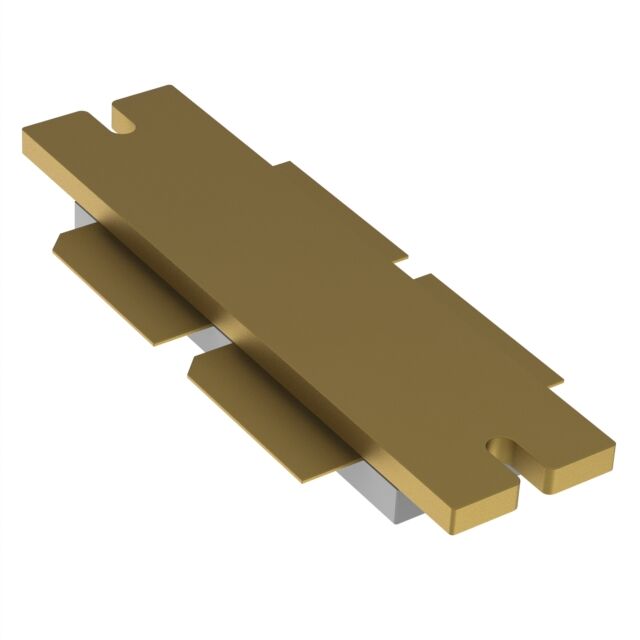

RF MOSFET HEMT 50V H-36275-4
GTVA101K42EV-V1-R250
ActiveMACOM Technology Solutions
RF MOSFET HEMT 50V H-36275-4
Description
General part information
GTVA101 Series
RF Mosfet 50 V 200 mA 960MHz ~ 1.215GHz 17dB 1400W H-36275-4
Technical Specifications
Parameters and characteristics for this part
| Specification | GTVA101K42EV-V1-R250 |
|---|---|
| Current - Test | 200 mA |
| Frequency (Max) | 1.215 GHz |
| Frequency (Min) | 960 MHz |
| Gain | 17 dB |
| Mounting Type | Chassis Mount |
| Package / Case | H-36275-4 |
| Package Name | H-36275-4 |
| Power - Output | 1.4 kW |
| Technology | HEMT |
| Voltage - Rated | 125 VAC |
| Voltage - Test | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
