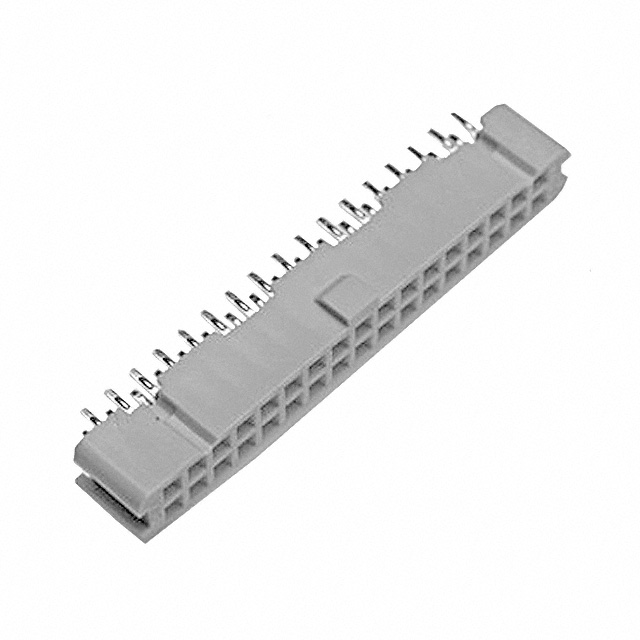

9150-4500PL

Active

3M (TC)

PCB RECEPTACLE, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 50 CONTACTS, THROUGH HOLE MOUNT, 9100 SERIES

Search across all available documentation for this part.

Active

3M (TC)

PCB RECEPTACLE, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 50 CONTACTS, THROUGH HOLE MOUNT, 9100 SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	9150-4500PL

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	12 µin
Contact Finish Thickness - Mating	0.3 µm
Contact Finish Thickness - Post	Flash
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Polarizing Key
Insulation Color	Gray
Insulation Height	9 mm
Insulation Height	0.354 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Style	Board to Board, Cable
Termination	Kinked Pin, Solder
Voltage Rating	1000 VDC

Part	Insulation Material	Contact Shape	Contact Length - Post [x]	Contact Length - Post	Insulation Height	Insulation Height	Mounting Type	Contact Finish - Post	Contact Finish Thickness - Post	Connector Type	Number of Rows	Contact Material	Features	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Fastening Type	Termination	Insulation Color	Voltage Rating	Style	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Contact Finish - Mating	Number of Positions	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
3M (TC) 9150-4500PL	Polybutylene Terephthalate (PBT) Glass Filled	Square	0.11 in	2.79 mm	9 mm	0.354 in	Through Hole	Gold	Flash	Receptacle	2	Copper Alloy	Polarizing Key	105 ░C	-55 °C	0.1 in	2.54 mm	Push-Pull	Kinked Pin Solder	Gray	1000 VDC	Board to Board Cable	Female Socket	2.54 mm	0.1 in	All	Gold	50	UL94 V-0	12 µin	0.3 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
