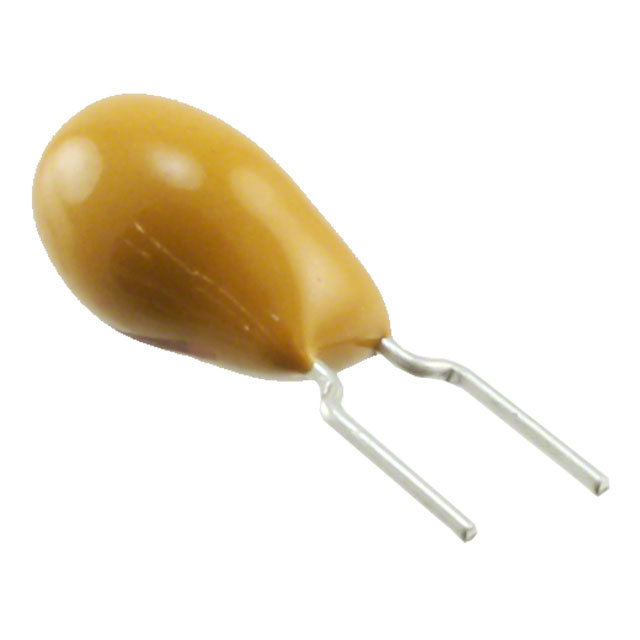

T356J685K050AS

Active

KEMET

CAP TANT 6.8UF 10% 50V RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP TANT 6.8UF 10% 50V RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	T356J685K050AS

Capacitance	6.8 ÁF
ESR (Equivalent Series Resistance)	2 Ohms
Features	General Purpose
Height - Seated (Max)	14 mm
Height - Seated (Max) [Max]	0.551 "
Lead Spacing	5.08 mm
Lead Spacing	0.2 in
Manufacturer Size Code	J
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [diameter]	0.331 in
Size / Dimension [diameter]	8.4 mm
Tolerance	10 %
Type	Conformal Coated
Voltage - Rated	50 VDC

Part	Lead Spacing	Lead Spacing	Capacitance	Voltage - Rated	Tolerance	Manufacturer Size Code	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Features	Type	Mounting Type	Package / Case	ESR (Equivalent Series Resistance)	Height - Seated (Max)	Height - Seated (Max) [Max]
KEMET T356J685K050AS	5.08 mm	0.2 in	6.8 ÁF	50 VDC	10 %	J	-55 °C	125 °C	0.331 in	8.4 mm	General Purpose	Conformal Coated	Through Hole	Radial	2 Ohms	14 mm	0.551 "
KEMET T356J336K025AT	5.08 mm	0.2 in	33 ÁF	25 VDC	10 %	J	-55 °C	125 °C	0.331 in	8.4 mm	General Purpose	Conformal Coated	Through Hole	Radial	1200 mOhm	14 mm	0.551 "
KEMET T356J157K006AS	5.08 mm	0.2 in	150 µF	6.3 V	10 %	J	-55 °C	125 °C	0.331 in	8.4 mm	General Purpose	Conformal Coated	Through Hole	Radial	900 mOhm	14 mm	0.551 "
KEMET T356J157K006AT	5.08 mm	0.2 in	150 µF	6.3 V	10 %	J	-55 °C	125 °C	0.331 in	8.4 mm	General Purpose	Conformal Coated	Through Hole	Radial	900 mOhm	14 mm	0.551 "
KEMET T356J107M010AT	5.08 mm	0.2 in	100 µF	10 V	20 %	J	-55 °C	125 °C	0.331 in	8.4 mm	General Purpose	Conformal Coated	Through Hole	Radial	1 Ohm	14 mm	0.551 "
KEMET T356J156K035AT	5.08 mm	0.2 in	15 µF	35 V	10 %	J	-55 °C	125 °C	0.331 in	8.4 mm	General Purpose	Conformal Coated	Through Hole	Radial	1.6 Ohm	14 mm	0.551 "
