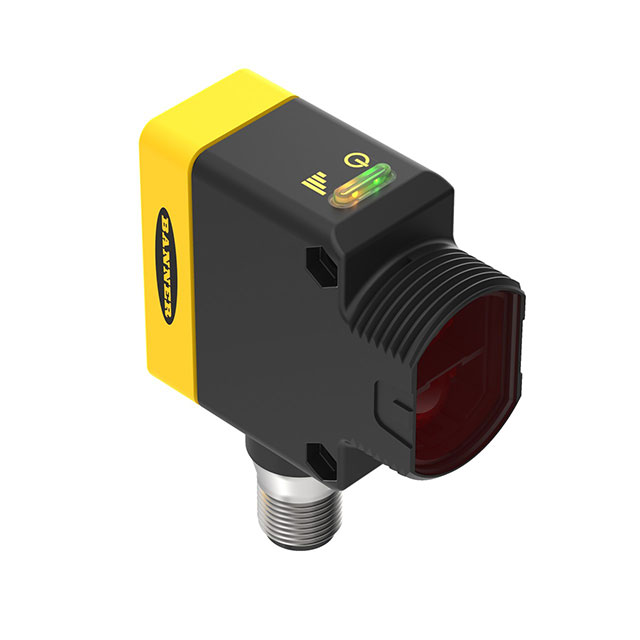

QS30AF600Q

Active

BANNER ENGINEERING

DISTANCE ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

BANNER ENGINEERING

DISTANCE ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Sensing Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Response Time	Light Source	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Adjustment Type	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Connection Method	Ingress Protection	Output Configuration	Cable Length	Cable Length	Operating Temperature [Min]	Operating Temperature [Max]	Sensing Distance	Sensing Distance	Light Source
BANNER ENGINEERING QS30AFQ	Background Suppression	30 VDC	10 VDC	1 ms	LED	300 mm	5 cm	1.97 "	11.81 "	Adjustable	55 °C	-10 °C	Connector	NEMA 6P IEC IP67	NPN/PNP
BANNER ENGINEERING QS30AF	Background Suppression	30 VDC	10 VDC	1 ms	LED	300 mm	5 cm	1.97 "	11.81 "	Adjustable	55 °C	-10 °C	Cable	NEMA 6P IEC IP67	NPN/PNP	78.74 in	2 m
BANNER ENGINEERING QS30AF600Q	Background Suppression	30 VDC	10 VDC		LED					Adjustable			Connector	NEMA 6P IEC IP67	NPN/PNP - Dark-ON/Light-ON			-20 C	60 °C	23.622 in	60 cm
BANNER ENGINEERING QS30ARXQP	Through-Beam	30 VDC	10 VDC		Infrared								Connector	NEMA 6P IEC IP67	NPN/PNP - Light-ON			-20 C	70 °C	698.82 ft	213 m	875 nm
BANNER ENGINEERING QS30ARXQ	Through-Beam	30 VDC	10 VDC		Infrared LED								Connector	IP69K NEMA 6P	NPN/PNP - Light-ON			-20 C	70 °C	698.82 ft	213 m
BANNER ENGINEERING QS30ARXQP-74010	Through-Beam	30 VDC	10 VDC	100 ms	Infrared LED								Connector	IP67 NEMA 6P	NPN - Light-ON			-20 C	70 °C	698.82 ft	213 m
BANNER ENGINEERING QS30ARX	Through-Beam	30 VDC	10 VDC		Infrared LED								Cable	IP67 NEMA 6P	NPN/PNP - Light-ON	78.74 in	2 m	-20 C	70 °C	698.82 ft	213 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 225.00
Newark	Each	1	$ 323.57

General part information

Background Suppression Optical Sensor 23.622" (600mm) NPN/PNP - Dark-ON/Light-ON
