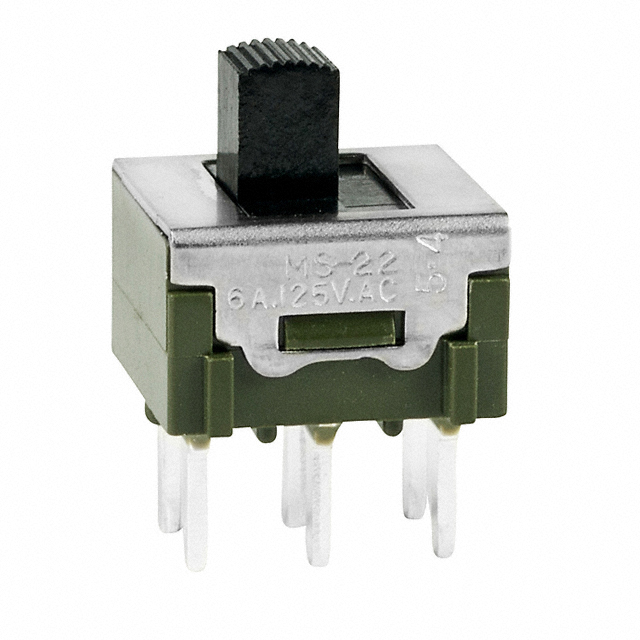

MS22ANW03

Obsolete

NKK Switches

SWITCH SLIDE DPDT 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH SLIDE DPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	MS22ANW03

Actuator Length [z]	5.1 mm
Actuator Material	Polybutylene Terephthalate (PBT), Glass Filled
Actuator Type	Standard
Circuit	DPDT
Contact Finish	Silver
Contact Material	Silver Alloy
Contact Timing	Non-Shorting
Current Rating (Amps)	6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Mechanical Life	100000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Switch Travel [custom]	2.2 mm
Termination Style	PC Pin
Voltage Rating - AC	125 V

Part	Contact Timing	Voltage Rating - AC	Contact Material	Switch Travel [custom]	Mechanical Life	Circuit	Contact Finish	Termination Style	Actuator Material	Mounting Type	Actuator Type	Actuator Length [z]	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Features	Current Rating (Amps)	Switch Function
NKK Switches MS22ANW03	Non-Shorting	125 V	Silver Alloy	2.2 mm	100000 Cycles	DPDT	Silver	PC Pin	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	Standard	5.1 mm	-30 ░C	85 °C	25000 Steps	Epoxy Sealed Terminals	6 A	On-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.99

General part information

Slide Switch DPDT Through Hole
