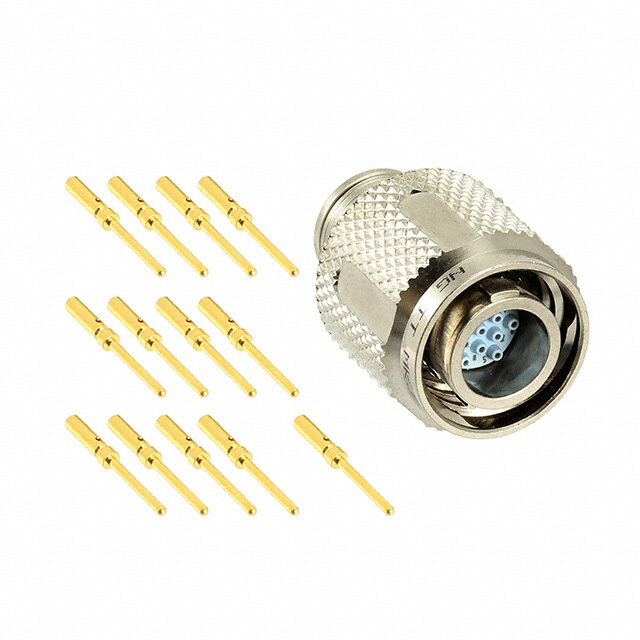

Specification	MKJ5A6F10-13PA

Connector Type	Male Pins, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	50 µin
Current Rating	5 A
Fastening Type	Threaded
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	13
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C
Orientation	A
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert (Maximum)	13
Shell Size - Insert (Minimum)	10
Shielding	Shielded
Termination	Crimp
Voltage Rating	500 V

MKJ5A Series

Part	Current Rating	Insert Material	Primary Material	Shell Material	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Fastening Type	Mounting Type	Contact Material	Color	Connector Type	Orientation	Termination	Shell Finish	Shielding	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish - Mating	Ingress Protection	Applications	Number of Positions	Voltage Rating	Mounting Feature	Contact Finish Thickness - Mating	Shell Size - Insert Width	Shell Size - Insert Length
ITT Cannon, LLC MKJ5A1W9-10SC	5 A	Thermoplastic	Metal	Aluminum Alloy	10 S	9	Threaded	Free Hanging (In-Line)	Copper Alloy	Olive Drab	Female Sockets Receptacle	C	Crimp	Olive Drab Cadmium	Shielded	150 °C	-55 °C	Gold	Environment Resistant	Aerospace Communication Systems Industrial Instrumentation Medical	10	500 V
ITT Cannon, LLC MKJ5A7F12-26PA	5 A	Thermoplastic	Metal	Aluminum Alloy	26	12	Threaded	Panel Mount	Copper Alloy	Silver	Male Pins Receptacle	A	Crimp	Electroless Nickel	Shielded	150 °C	-55 °C	Gold	Environment Resistant	Aerospace Communication Systems Industrial Instrumentation Medical	26	500 V	Bulkhead Front Side Nut
ITT Cannon, LLC MKJ5A6F9-10PA	5 A		Metal	Aluminum Alloy	10 S	9	Threaded	Free Hanging (In-Line)			Male Pins Plug	A	Crimp	Electroless Nickel	Shielded	150 °C	-55 °C	Gold	Environment Resistant		10	500 V		50 µin
ITT Cannon, LLC MKJ5A6F8-4SA	5 A		Metal	Aluminum Alloy			Threaded	Free Hanging (In-Line)			Female Sockets Plug	A	Crimp	Electroless Nickel	Shielded	150 °C	-55 °C	Gold	Environment Resistant		4	500 V		50 µin	4 mm	8 mm
ITT Cannon, LLC MKJ5A6F11-4SA	13 A	Thermoplastic	Metal	Aluminum Alloy			Threaded	Free Hanging (In-Line)	Copper Alloy	Silver	Female Sockets Plug	N (Normal)	Crimp	Electroless Nickel	Shielded	175 °C	-65 °C	Gold	Environment Resistant	Aerospace Communication Systems Industrial Instrumentation Medical	4			50 µin	4 mm	11 mm
ITT Cannon, LLC MKJ5A7F8-4SA	5 A	Thermoplastic	Metal	Aluminum Alloy			Threaded	Panel Mount	Copper Alloy	Silver	Female Sockets Receptacle	N (Normal)	Crimp	Electroless Nickel	Shielded	175 °C	-65 °C	Gold	Environment Resistant	Aerospace Communication Systems Industrial Instrumentation Medical	4		Bulkhead Front Side Nut	50 µin	4 mm	8 mm
ITT Cannon, LLC MKJ5A7W12-26PC	5 A	Thermoplastic	Metal	Aluminum Alloy	26	12	Threaded	Panel Mount	Copper Alloy	Olive Drab	Male Pins Receptacle	C	Crimp	Olive Drab Cadmium	Shielded	150 °C	-55 °C	Gold	Environment Resistant	Aerospace Communication Systems Industrial Instrumentation Medical	26	500 V	Bulkhead Front Side Nut
ITT Cannon, LLC MKJ5A6F9-10PB	5 A	Thermoplastic	Metal	Aluminum Alloy	10 S	9	Threaded	Free Hanging (In-Line)	Copper Alloy	Silver	Male Pins Plug	B	Crimp	Electroless Nickel	Shielded	150 °C	-55 °C	Gold	Environment Resistant	Aerospace Communication Systems Industrial Instrumentation Medical	10	500 V
ITT Cannon, LLC MKJ5A6F8-7SA	5 A		Metal	Aluminum Alloy			Threaded	Free Hanging (In-Line)			Female Sockets Plug	A	Crimp	Electroless Nickel	Shielded	150 °C	-55 °C	Gold	Environment Resistant		7	500 V		50 µin	7 mm	8 mm
ITT Cannon, LLC MKJ5A7F10-13PA	5 A	Thermoplastic	Metal	Aluminum Alloy	13	10	Threaded	Panel Mount	Copper Alloy	Silver	Male Pins Receptacle	A	Crimp	Electroless Nickel	Shielded	150 °C	-55 °C	Gold	Environment Resistant	Aerospace Communication Systems Industrial Instrumentation Medical	13	500 V	Bulkhead Front Side Nut
