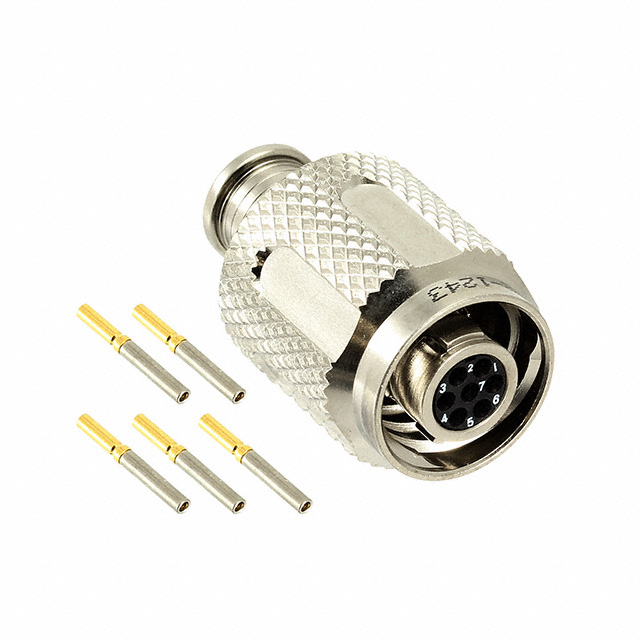

MKJ5A6F8-7SA

Active

ITT Cannon, LLC

CONN PLUG FMALE 7POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

MKJ5A6F8-7SA

Active

ITT Cannon, LLC

CONN PLUG FMALE 7POS GOLD CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MKJ5A6F8-7SA

Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Current Rating (Amps)	5 A
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Orientation	A
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	7
Shell Size - Insert [Min]	8
Shielding	Shielded
Termination	Crimp
Voltage Rating	500 VAC

MKJ5A Series

Part	Current Rating (Amps)	Shielding	Connector Type	Contact Material	Contact Finish - Mating	Ingress Protection	Voltage Rating	Mounting Type	Applications	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Termination	Shell Material	Shell Finish	Orientation	Number of Positions	Color	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Insert Material	Mounting Feature	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert
ITT Cannon, LLC MKJ5A1W9-10SC	5 A	Shielded	Receptacle Female Sockets	Copper Alloy	Gold	Environment Resistant	500 VAC	Free Hanging (In-Line)	Aerospace Communication Systems Industrial Instrumentation Medical	10	9	Crimp	Aluminum Alloy	Olive Drab Cadmium	C	10	Olive Drab	-55 °C	150 °C	Metal	Thermoplastic
ITT Cannon, LLC MKJ5A7F12-26PA	5 A	Shielded	Male Pins Receptacle	Copper Alloy	Gold	Environment Resistant	500 VAC		Aerospace Communication Systems Industrial Instrumentation Medical	26	12	Crimp	Aluminum Alloy	Electroless Nickel	A	26	Silver	-55 °C	150 °C	Metal	Thermoplastic	Bulkhead - Front Side Nut
ITT Cannon, LLC MKJ5A6F9-10PA	5 A	Shielded	Male Pins Plug		Gold	Environment Resistant	500 VAC	Free Hanging (In-Line)		10	9	Crimp	Aluminum Alloy	Electroless Nickel	A	10		-55 °C	150 °C	Metal			1.27 µm	50 µin
ITT Cannon, LLC MKJ5A7F8-4SA	5 A	Shielded	Receptacle Female Sockets	Copper Alloy	Gold	Environment Resistant			Aerospace Communication Systems Industrial Instrumentation Medical			Crimp	Aluminum Alloy	Electroless Nickel	N	4	Silver	-65 ░C	347 °F	Metal	Thermoplastic	Bulkhead - Front Side Nut	1.27 µm	50 µin	8-4
ITT Cannon, LLC MKJ5A7W12-26PC	5 A	Shielded	Male Pins Receptacle	Copper Alloy	Gold	Environment Resistant	500 VAC		Aerospace Communication Systems Industrial Instrumentation Medical	26	12	Crimp	Aluminum Alloy	Olive Drab Cadmium	C	26	Olive Drab	-55 °C	150 °C	Metal	Thermoplastic	Bulkhead - Front Side Nut
ITT Cannon, LLC MKJ5A6F9-10PB	5 A	Shielded	Male Pins Plug	Copper Alloy	Gold	Environment Resistant	500 VAC	Free Hanging (In-Line)	Aerospace Communication Systems Industrial Instrumentation Medical	10	9	Crimp	Aluminum Alloy	Electroless Nickel	B	10	Silver	-55 °C	150 °C	Metal	Thermoplastic
ITT Cannon, LLC MKJ5A6F8-7SA	5 A	Shielded	Female Sockets Plug		Gold	Environment Resistant	500 VAC	Free Hanging (In-Line)		7	8	Crimp	Aluminum Alloy	Electroless Nickel	A	7		-55 °C	150 °C	Metal			1.27 µm	50 µin
ITT Cannon, LLC MKJ5A7F10-13PA	5 A	Shielded	Male Pins Receptacle	Copper Alloy	Gold	Environment Resistant	500 VAC		Aerospace Communication Systems Industrial Instrumentation Medical	13	10	Crimp	Aluminum Alloy	Electroless Nickel	A	13	Silver	-55 °C	150 °C	Metal	Thermoplastic	Bulkhead - Front Side Nut
ITT Cannon, LLC MKJ5A6F11-19PA	5 A	Shielded	Male Pins Plug		Gold	Environment Resistant	500 VAC	Free Hanging (In-Line)		19	11	Crimp	Aluminum Alloy	Electroless Nickel	A	19		-55 °C	150 °C	Metal			1.27 µm	50 µin
ITT Cannon, LLC MKJ5A7W12-26SA	5 A	Shielded	Receptacle Female Sockets	Copper Alloy	Gold	Environment Resistant	500 VAC		Aerospace Communication Systems Industrial Instrumentation Medical	26	12	Crimp	Aluminum Alloy	Olive Drab Cadmium	A	26	Olive Drab	-55 °C	150 °C	Metal	Thermoplastic	Bulkhead - Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 164.10
		10	$ 139.50
		25	$ 130.78
		50	$ 125.14

Description

General part information

MKJ5A Series

7 Position Circular Connector Plug, Female Sockets Crimp

Documents

Technical documentation and resources

No documents available
