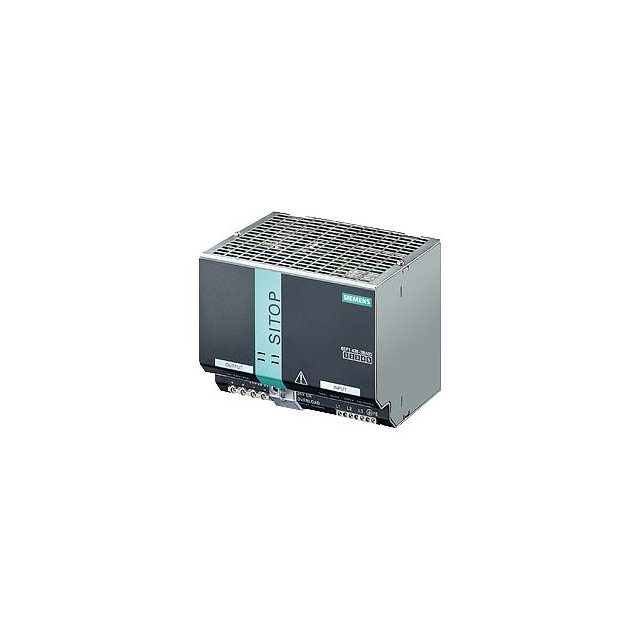

6EP14363BA008AA0

Active

Siemens

AC/DC DIN RAIL SUPPLY 24V

Search across all available documentation for this part.

Active

Siemens

AC/DC DIN RAIL SUPPLY 24V

Technical Specifications

Parameters and characteristics for this part

Part	Standard Number	Input Type	Applications	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Efficiency	Features	Number of Outputs
Siemens 6EP14363BA008AA0	60950-1 UL 508	AC	Industrial ITE (Commercial)	575 VAC	320 VAC	24 V	70 °C	0 °C	20 A	6.3 "	4.92 in	4.92 in	125 mm	160 mm	125 mm	90 %	Adjustable Output IP20	1
Siemens 6EP14363BA00	60950-1 UL 508	AC	Industrial ITE (Commercial)	550 VAC	320 VAC	24 V	70 °C	0 °C	20 A	6.3 "	4.92 in	4.92 in	125 mm	160 mm	125 mm	90 %	Adjustable Output IP20	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 684.73
