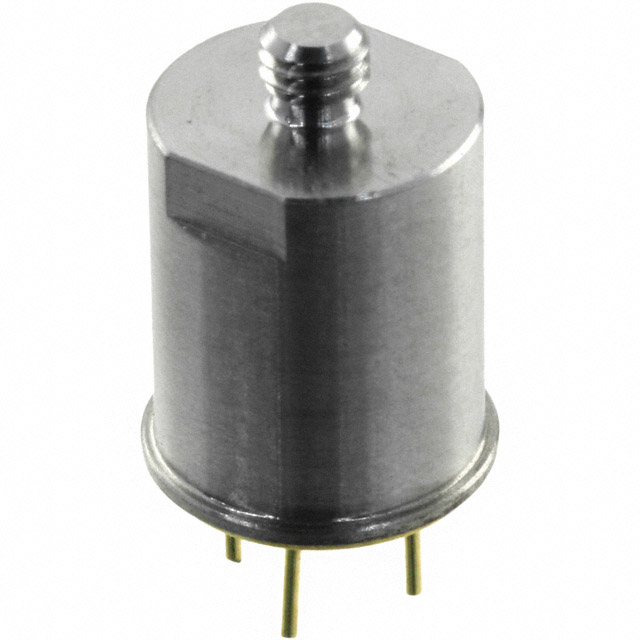

ACCELEROMETER 200G ANALOG TO5-3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
805M1-0200-01
ActiveTE Connectivity Measurement Specialties
ACCELEROMETER 200G ANALOG TO5-3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 805M1-0200-01 |
|---|---|
| Acceleration Range [Max] | 200 g |
| Acceleration Range [Min] | -200 g |
| Axis | Z |
| Bandwidth [Max] | 12 kHz |
| Bandwidth [Min] | 0.4 Hz |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Analog Voltage |
| Package / Case | TO-205AA, TO-5-3 Metal Can |
| Sensitivity (mV/g) | 10 mV/g |
| Supplier Device Package | TO-5-3 |
| Type | Analog |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 133.17 | |
| 20 | $ 120.69 | |||
| 40 | $ 116.53 | |||
Description
General part information
805M1 Series
Accelerometer Z Axis ±200g 0.4Hz ~ 12kHz TO-5-3
Documents
Technical documentation and resources
