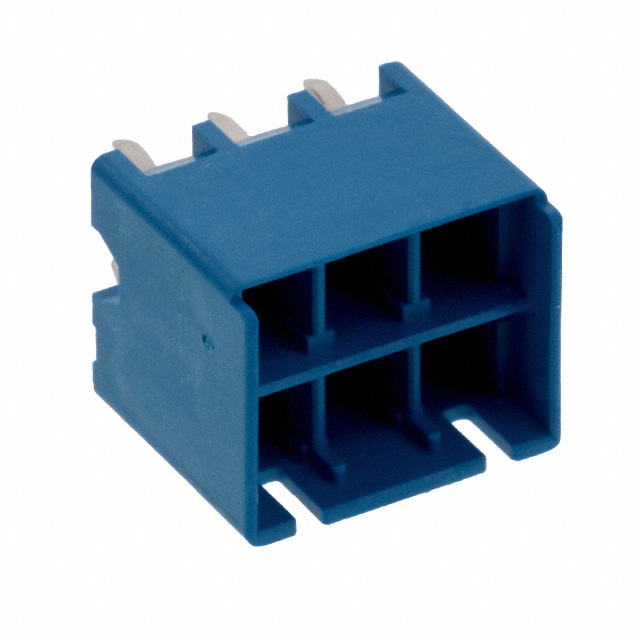

2-1376387-3
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 6POS 5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2-1376387-3 | 1376387 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Connector Type | Header | Header |
| Contact Finish - Post | Tin | Tin |
| Contact Length - Post | 3.5 mm | 3.5 mm |
| Contact Length - Post | 0.138 in | 0.138 in |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Rectangular | Rectangular |
| Contact Type | Tab | Tab |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Features | Board Guide | Board Guide |
| Insulation Color | Blue | Natural, Blue |
| Insulation Height | 14.1 mm | 14.1 mm |
| Insulation Height | 0.555 in | 0.555 in |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Mated Stacking Heights | 19.4 mm | 19.4 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 6 | 6 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch - Mating | 5 mm | 5 mm |
| Pitch - Mating | 0.197 " | 0.197 " |
| Row Spacing - Mating [x] | 0.244 " | 0.244 " |
| Row Spacing - Mating [x] | 6.2 mm | 6.2 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Kinked Pin, Solder | Kinked Pin, Solder |
| Voltage Rating | 300 VAC | 300 VAC |
1376387 Series
CONN HEADER VERT 6POS 5MM
| Part | Current Rating (Amps) | Fastening Type | Connector Type | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Style | Features | Insulation Material | Pitch - Mating | Pitch - Mating | Insulation Color | Applications | Number of Positions | Contact Length - Post | Contact Length - Post | Number of Rows | Contact Material | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Voltage Rating | Termination | Material Flammability Rating | Mounting Type | Contact Shape | Contact Finish - Post | Shrouding | Mated Stacking Heights | Insulation Height | Insulation Height | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1376387-1 | Varies by Wire Gauge | Locking Ramp | Header | All | -40 °C | 105 ░C | Board to Cable/Wire | Board Guide | Polyamide (PA66), Nylon 6/6, Glass Filled | 5 mm | 0.197 " | Natural | General Purpose | 6 | 3.5 mm | 0.138 in | 2 | Copper Alloy | 0.244 " | 6.2 mm | 300 VAC | Kinked Pin, Solder | UL94 V-0 | Through Hole | Rectangular | Tin | Shrouded - 4 Wall | 19.4 mm | 14.1 mm | 0.555 in | Tab |
TE Connectivity AMP Connectors 2-1376387-3 | Varies by Wire Gauge | Locking Ramp | Header | All | -40 °C | 105 ░C | Board to Cable/Wire | Board Guide | Polyamide (PA66), Nylon 6/6, Glass Filled | 5 mm | 0.197 " | Blue | General Purpose | 6 | 3.5 mm | 0.138 in | 2 | Copper Alloy | 0.244 " | 6.2 mm | 300 VAC | Kinked Pin, Solder | UL94 V-0 | Through Hole | Rectangular | Tin | Shrouded - 4 Wall | 19.4 mm | 14.1 mm | 0.555 in | Tab |
