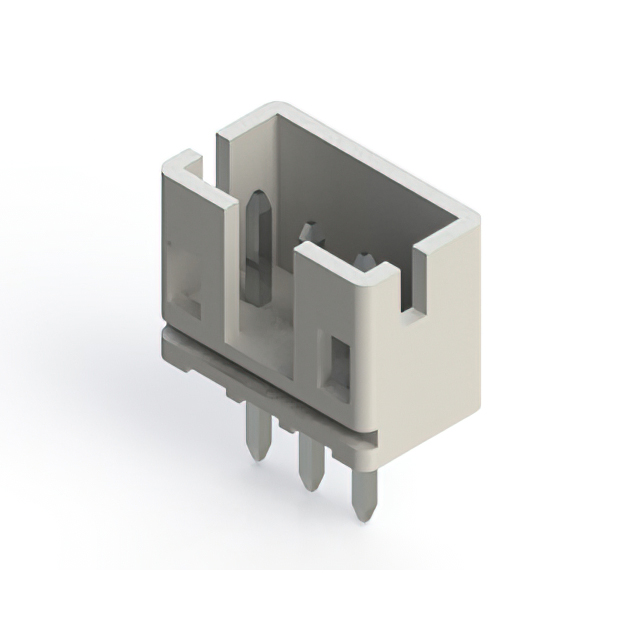

140-503-415-101

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 3 P.C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

140-503-415-101

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 3 P.C

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	140-503-415-101

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height	0.24 in
Insulation Height	6.1 mm
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 VAC

140-503 Series

Part	Insulation Material	Mounting Type	Connector Type	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Note	Features	Fastening Type	Contact Type	Pitch [x]	Pitch [x]	Number of Rows	Color	Shrouding	Contact Shape	Insulation Color	Voltage Rating	Contact Material	Pitch - Mating [x]	Pitch - Mating [x]	Material Flammability Rating	Style	Insulation Height	Insulation Height	Current Rating (Amps)	Number of Positions Loaded	Contact Finish - Post	Termination	Insulation Height [custom]	Insulation Height [custom]
EDAC Inc. 140-503-210-011	Polyamide (PA66) Nylon 6/6	Free Hanging (In-Line)	Receptacle	Crimp	-25 °C	85 °C	Contacts Not Included	Polarizing Key	Detent Lock	Female Socket	0.079 in	2 mm	1	Natural
EDAC Inc. 140-503-415-101	Polyamide (PA66) Nylon 6/6	Through Hole	Header		-40 °C	105 ░C			Detent Lock	Male Pin			1		Shrouded - 4 Wall	Square	Natural	100 VAC	Brass	0.079 in	2 mm	UL94 V-0	Board to Cable/Wire	0.24 in	6.1 mm	2 A	All	Tin	Solder
EDAC Inc. 140-503-415-100	Polyamide (PA66) Nylon 6/6	Through Hole Right Angle	Header		-40 °C	105 ░C			Detent Lock	Male Pin			1		Shrouded - 4 Wall	Square	Natural	100 VAC	Brass	0.079 in	2 mm	UL94 V-0	Board to Cable/Wire	0.185 in	4.7 mm	2 A	All	Tin	Solder
EDAC Inc. 140-503-417-060	Nylon 9T Polyamide (PA9T)	Surface Mount Right Angle	Header		-25 °C	85 °C		Solder Retention	Detent Lock	Male Pin			1		Shrouded - 4 Wall	Square	Natural	100 VAC	Brass	0.079 in	2 mm	UL94 V-0	Board to Cable/Wire			2 A	All	Tin	Solder	5.51 mm	0.217 in
EDAC Inc. 140-503-415-000	Polyamide (PA66) Nylon 6/6	Through Hole Right Angle	Header		-40 °C	105 ░C			Detent Lock	Male Pin			1		Shrouded - 4 Wall	Square	Natural	100 VAC	Brass	0.079 in	2 mm	UL94 V-0	Board to Cable/Wire	0.197 in	5 mm	2 A	All	Tin	Kinked Pin Solder
EDAC Inc. 140-503-415-001	Polyamide (PA66) Nylon 6/6	Through Hole	Header		-40 °C	105 ░C			Detent Lock	Male Pin			1		Shrouded - 4 Wall	Square	Natural	100 VAC	Brass	0.079 in	2 mm	UL94 V-0	Board to Cable/Wire	0.24 in	6.1 mm	2 A	All	Tin	Kinked Pin Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.06

Description

General part information

140-503 Series

Connector Header Through Hole 3 position 0.079" (2.00mm)

Documents

Technical documentation and resources
