2320-5211-TG

Active

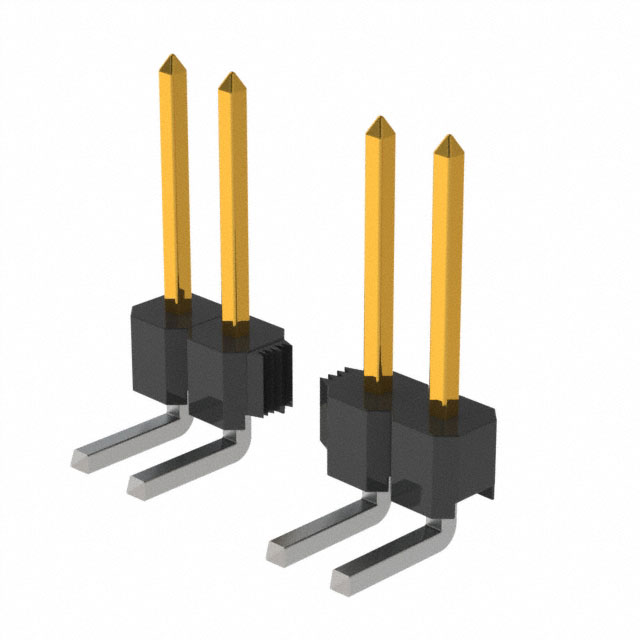

CONN HEADER R/A 20POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2320-5211-TG

Active

CONN HEADER R/A 20POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2320-5211-TG	2320 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin-Lead
Contact Finish Thickness - Mating	10 çin	10 çin
Contact Finish Thickness - Mating	0.25 çm	0.25 çm
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating	-	5.84 mm
Contact Length - Mating [x]	0.318 "	0.23 - 0.318 in
Contact Length - Mating [x]	8.08 mm	8.08 mm
Contact Length - Post	-	2.79 mm
Contact Length - Post [x]	0.12 in	0.11 - 0.12 in
Contact Length - Post [x]	3.05 mm	3.05 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	0.1 in	0.1 in
Insulation Height	2.54 mm	2.54 - 6.14 mm
Insulation Height	-	0.242 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Through Hole, Right Angle
Number of Positions	20	20
Number of Positions Loaded	All	All
Number of Rows	1	1 - 2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	-	0.45 - 0.538 "
Overall Contact Length	-	11.43 - 13.67 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating	-	2.54 mm
Row Spacing - Mating	-	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

2320 Series

CONN UNSHROUDED HEADER HDR 20 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE

Part	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Mounting Type	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish - Post	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Insulation Height	Insulation Height	Shrouding	Pitch - Mating	Pitch - Mating	Insulation Color	Termination	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Contact Type	Style	Material Flammability Rating	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Insulation Height [custom]	Contact Length - Post	Contact Length - Mating [x]
3M 2320-6121-TG	20	10 çin	0.25 çm	2	Through Hole	0.23 in	5.84 mm	Tin-Lead	Header	2.54 mm	0.1 in	Square	0.45 "	11.43 mm	Gold	0.1 in	2.54 mm	Unshrouded	0.1 in	2.54 mm	Black	Solder	3 A	105 ░C	-55 °C	All	Male Pin	Board to Board, Cable	UL94 V-0	Push-Pull	2.54 µm	100 µin	0.12 in	3.05 mm	Copper Alloy
3M 2320-5121-TG	20	10 çin	0.25 çm	2	Through Hole, Right Angle	0.23 in	5.84 mm	Tin-Lead	Header	2.54 mm	0.1 in	Square			Gold		6.14 mm	Unshrouded	0.1 in	2.54 mm	Black	Solder	3 A	105 ░C	-55 °C	All	Male Pin	Board to Board, Cable	UL94 V-0	Push-Pull	2.54 µm	100 µin	0.11 in		Copper Alloy	0.242 in	2.79 mm
3M 2320-6211-TG	20	10 çin	0.25 çm	1	Through Hole	0.318 "		Tin-Lead	Header			Square	0.538 "	13.67 mm	Gold	0.1 in	2.54 mm	Unshrouded	0.1 in	2.54 mm	Black	Solder	3 A	105 ░C	-55 °C	All	Male Pin	Board to Board, Cable	UL94 V-0	Push-Pull	2.54 µm	100 µin	0.12 in	3.05 mm	Copper Alloy			8.08 mm
3M 2320-5211-TG	20	10 çin	0.25 çm	1	Through Hole, Right Angle	0.318 "		Tin-Lead	Header			Square			Gold	0.1 in	2.54 mm	Unshrouded	0.1 in	2.54 mm	Black	Solder	3 A	105 ░C	-55 °C	All	Male Pin	Board to Board, Cable	UL94 V-0	Push-Pull	2.54 µm	100 µin	0.12 in	3.05 mm	Copper Alloy			8.08 mm
