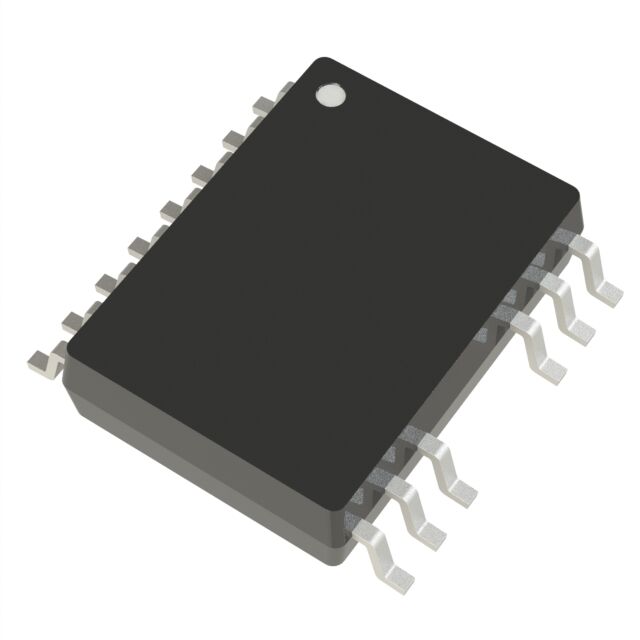

TLE42794GMXUMA2

Active

Infineon Technologies

IC REG LINEAR 5V 100MA PG-DSO-14

Search across all available documentation for this part.

Active

Infineon Technologies

IC REG LINEAR 5V 100MA PG-DSO-14

Technical Specifications

Parameters and characteristics for this part

Specification	TLE42794GMXUMA2

Control Features	Reset
Current - Output	100 mA
Current - Supply (Max) [Max]	8 mA
Grade	Automotive
Mounting Type	Surface Mount
Number of Regulators	1
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	14-SOIC
Package / Case [x]	0.154 in
Package / Case [y]	3.9 mm
Protection Features	Short Circuit, Reverse Polarity, Over Current, Over Temperature
PSRR	70 dB
Qualification	AEC-Q100
Supplier Device Package	PG-DSO-14
Voltage - Input (Max) [Max]	45 V
Voltage - Output (Min/Fixed)	5 V
Voltage Dropout (Max) [Max]	0.5 V

Part	Output Configuration	Control Features	Voltage Dropout (Max) [Max]	Protection Features	Grade	Number of Regulators	Package / Case [x]	Package / Case [y]	Package / Case	Mounting Type	Output Type	Qualification	PSRR	Voltage - Output (Min/Fixed)	Voltage - Input (Max) [Max]	Current - Output	Supplier Device Package	Current - Supply (Max) [Max]
Infineon Technologies TLE42794GMXUMA2	Positive	Reset	0.5 V	Over Current Over Temperature Reverse Polarity Short Circuit	Automotive	1	0.154 in	3.9 mm	14-SOIC	Surface Mount	1.81 mOhm	AEC-Q100	70 dB	5 V	45 V	100 mA	PG-DSO-14	8 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 100mA PG-DSO-14
