929730-01-02

Active

3M (TC)

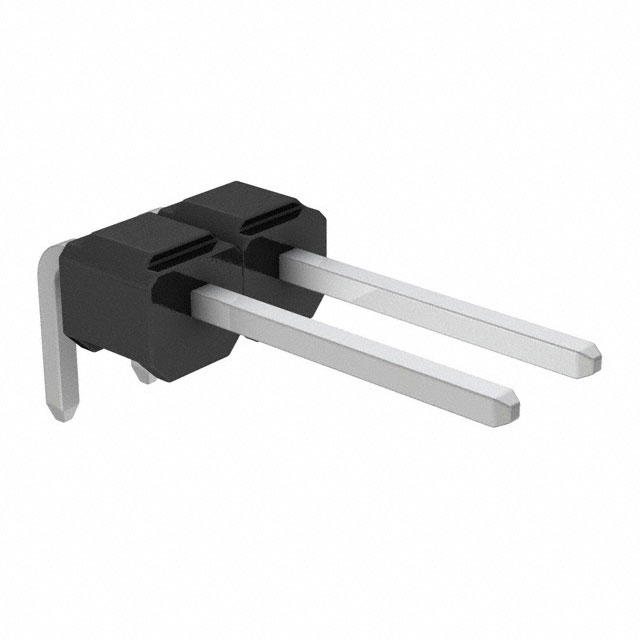

CONN HEADER R/A 2POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

929730-01-02

Active

3M (TC)

CONN HEADER R/A 2POS 2.54MM

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	929730-01-02

Connector Type	Breakaway, Header
Contact Finish - Mating	Tin-Lead
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

929730 Series

Part	Fastening Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Number of Rows	Contact Material	Insulation Material	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Insulation Color	Material Flammability Rating	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post	Connector Type	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Termination	Contact Shape	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Type	Number of Positions	Contact Finish - Post
3M (TC) 929730-01-12	Push-Pull	0.318 "	8.08 mm	1	Copper Alloy	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Unshrouded	-40 °C	105 ░C	Through Hole Right Angle	Black	UL94 V-0	2.5 A	0.11 in	2.79 mm	Breakaway Header	All	2.54 çm	100 çin	Tin-Lead	Solder	Square	0.1 in	2.54 mm	12	Male Pin
3M (TC) 929730-01-24	Push-Pull	0.318 "	8.08 mm	1	Copper Alloy	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Unshrouded	-40 °C	105 ░C	Through Hole Right Angle	Black	UL94 V-0	2.5 A	0.11 in	2.79 mm	Breakaway Header	All	2.54 çm	100 çin	Tin-Lead	Solder	Square	0.1 in	2.54 mm	24	Male Pin
3M (TC) 929730-01-15	Push-Pull	0.318 "	8.08 mm	1	Copper Alloy	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Unshrouded	-40 °C	105 ░C	Through Hole Right Angle	Black	UL94 V-0	2.5 A	0.11 in	2.79 mm	Breakaway Header	All	2.54 çm	100 çin	Tin-Lead	Solder	Square	0.1 in	2.54 mm	15	Male Pin
3M (TC) 929730-01-06	Push-Pull	0.318 "	8.08 mm	1	Copper Alloy	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Unshrouded	-40 °C	105 ░C	Through Hole Right Angle	Black	UL94 V-0	2.5 A	0.11 in	2.79 mm	Breakaway Header	All	2.54 çm	100 çin	Tin-Lead	Solder	Square	0.1 in	2.54 mm	6	Male Pin
3M (TC) 929730-01-16-RK	Push-Pull	0.318 "	8.08 mm	1	Copper Alloy	Polycyclohexylenedimethylene Terephthalate (PCT)	Unshrouded	-40 °C	105 ░C	Through Hole Right Angle	Black	UL94 V-0	2.5 A	0.11 in	2.79 mm	Breakaway Header	All	5.08 µm	200 µin		Solder	Square	0.1 in	2.54 mm		Male Pin	16	Tin
3M (TC) 929730-01-31	Push-Pull	0.318 "	8.08 mm	1	Copper Alloy	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Unshrouded	-40 °C	105 ░C	Through Hole Right Angle	Black	UL94 V-0	2.5 A	0.11 in	2.79 mm	Breakaway Header	All	2.54 çm	100 çin	Tin-Lead	Solder	Square	0.1 in	2.54 mm	31	Male Pin
3M (TC) 929730-01-36-RK	Push-Pull	0.318 "	8.08 mm	1	Copper Alloy	Polycyclohexylenedimethylene Terephthalate (PCT)	Unshrouded	-40 °C	105 ░C	Through Hole Right Angle	Black	UL94 V-0	2.5 A	0.11 in	2.79 mm	Breakaway Header	All	5.08 µm	200 µin		Solder	Square	0.1 in	2.54 mm	36	Male Pin		Tin
3M (TC) 929730-01-14	Push-Pull	0.318 "	8.08 mm	1	Copper Alloy	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Unshrouded	-40 °C	105 ░C	Through Hole Right Angle	Black	UL94 V-0	2.5 A	0.11 in	2.79 mm	Breakaway Header	All	2.54 çm	100 çin	Tin-Lead	Solder	Square	0.1 in	2.54 mm	14	Male Pin
3M (TC) 929730-01-25	Push-Pull	0.318 "	8.08 mm	1	Copper Alloy	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Unshrouded	-40 °C	105 ░C	Through Hole Right Angle	Black	UL94 V-0	2.5 A	0.11 in	2.79 mm	Breakaway Header	All	2.54 çm	100 çin	Tin-Lead	Solder	Square	0.1 in	2.54 mm		Male Pin
3M (TC) 929730-01-02	Push-Pull	0.318 "	8.08 mm	1	Copper Alloy	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Unshrouded	-40 °C	105 ░C	Through Hole Right Angle	Black	UL94 V-0	2.5 A	0.11 in	2.79 mm	Breakaway Header	All	2.54 çm	100 çin	Tin-Lead	Solder	Square	0.1 in	2.54 mm	2	Male Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.26
		10	$ 0.22
		100	$ 0.17
		500	$ 0.15
		1000	$ 0.12
		5000	$ 0.11
		10000	$ 0.10

Description

General part information

929730 Series

Connector Header Through Hole, Right Angle 2 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Interconnect Catalog

Datasheet
