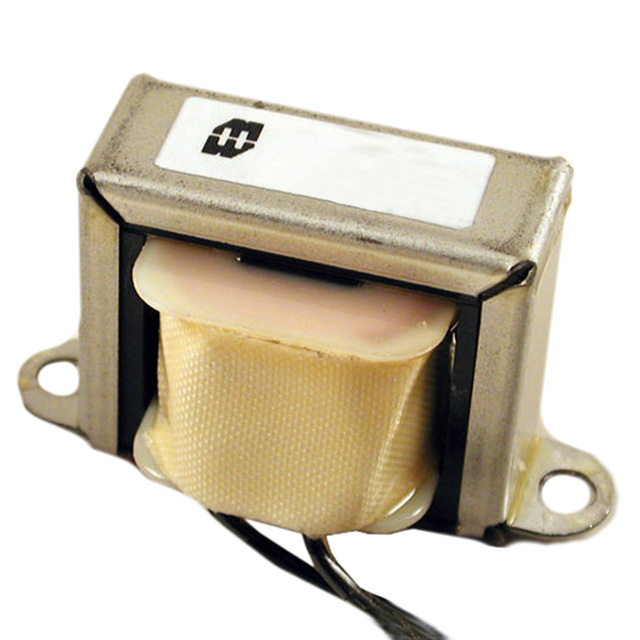

158SA
ActiveHammond Manufacturing
FIXED IND 1H 240MA 41 OHM CHASS
Deep-Dive with AI
Search across all available documentation for this part.
158SA
ActiveHammond Manufacturing
FIXED IND 1H 240MA 41 OHM CHASS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 158SA |
|---|---|
| Current Rating (Amps) | 0.24 A |
| DC Resistance (DCR) | 41 Ohm |
| Height - Seated (Max) [Max] [z] | 2 " |
| Height - Seated (Max) [Max] [z] | 50.8 mm |
| Inductance | 1 H |
| Mounting Type | Chassis Mount |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension [x] | 3.25 in |
| Size / Dimension [x] | 82.55 mm |
| Size / Dimension [y] | 2 " |
| Size / Dimension [y] | 50.8 mm |
| Tolerance | 15 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.28 | |
| 10 | $ 10.71 | |||
| 100 | $ 9.58 | |||
| 1000 | $ 9.34 | |||
Description
General part information
158S Series
1 H Unshielded Inductor 240 mA 41Ohm Nonstandard
Documents
Technical documentation and resources
No documents available
