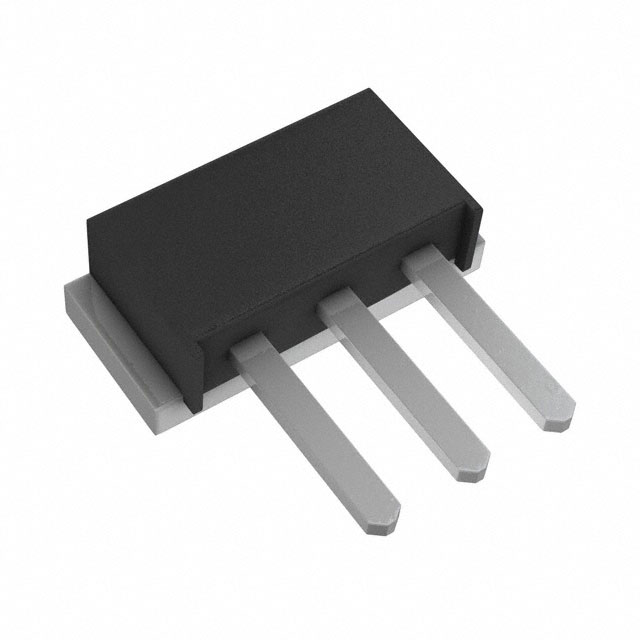

62CNQ030SM

Active

SMC Diode Solutions

DIODE ARR SCHOTT 30V 30A PRM3-SM

Search across all available documentation for this part.

Active

SMC Diode Solutions

DIODE ARR SCHOTT 30V 30A PRM3-SM

Technical Specifications

Parameters and characteristics for this part

Specification	62CNQ030SM

Current - Average Rectified (Io) (per Diode)	30 A
Current - Reverse Leakage @ Vr	5 mA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	PRM3-SM
Speed	200 mA, 500 ns
Supplier Device Package	PRM3-SM
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V
Voltage - Forward (Vf) (Max) @ If	530 mV

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Speed	Supplier Device Package	Current - Average Rectified (Io) (per Diode)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Diode Configuration	Package / Case	Mounting Type	Current - Reverse Leakage @ Vr	Technology
SMC Diode Solutions 62CNQ030SM	30 V	530 mV	200 mA 500 ns	PRM3-SM	30 A	150 °C	-55 °C	1 Pair Common Cathode	PRM3-SM	Through Hole	5 mA	Schottky
SMC Diode Solutions 62CNQ030	30 V	530 mV	200 mA 500 ns	PRM3	30 A	150 °C	-55 °C	1 Pair Common Cathode	PRM3	Chassis Mount	5 mA	Schottky

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	48	$ 18.35

General part information

Diode Array 1 Pair Common Cathode 30 V 30A Through Hole PRM3-SM
