Q-2G02S000H036i
ActiveAmphenol Custom Cable

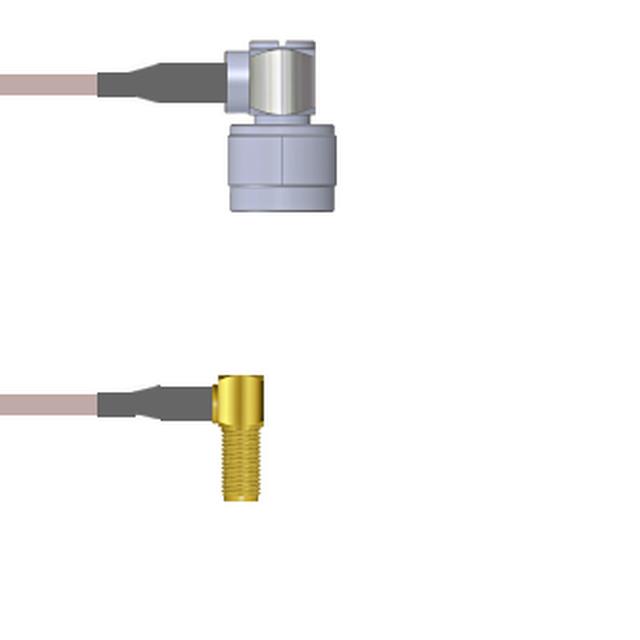

COAX CBL SMA TO N-TYPE 36"
Deep-Dive with AI
Search across all available documentation for this part.
Q-2G02S000H036i
ActiveAmphenol Custom Cable
COAX CBL SMA TO N-TYPE 36"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-2G02S000H036i |
|---|---|
| 1st Connector | SMA Jack, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | RG-142 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 11 GHz |
| Length | 91.44 cm |
| Length | 36 in |
| Overall Impedance | 50 Ohms |
| Style | SMA to N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 155.42 | |
| 25 | $ 152.39 | |||
| 50 | $ 149.36 | |||
| 100 | $ 146.34 | |||
| 250 | $ 143.31 | |||
Description
General part information
Q-2G02S0 Series
Cable Assembly Coaxial SMA to N-Type RG-142 36.00" (914.40mm)
Documents
Technical documentation and resources
No documents available
