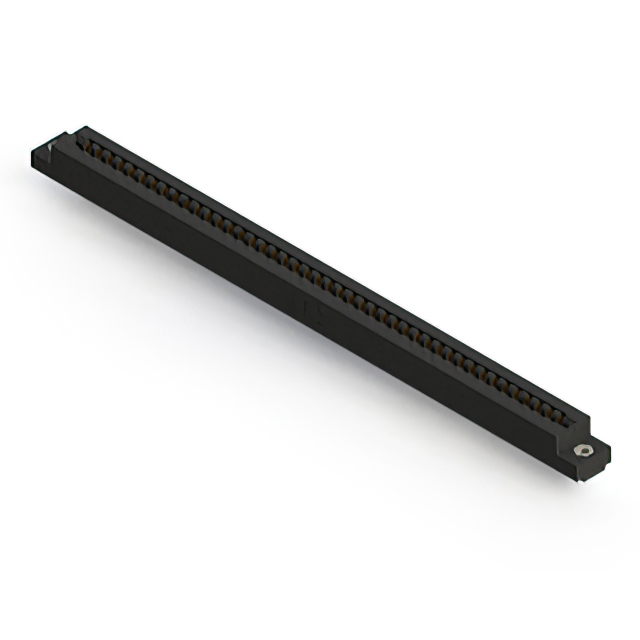

357-044-547-108

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

357-044-547-108

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	357-044-547-108

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	44
Number of Positions/Bay/Row [custom]	44
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

357-044 Series

...

Part	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Material	Contact Finish	Number of Positions/Bay/Row [custom]	Termination Rows	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Termination	Pitch [x]	Pitch [x]	Number of Positions	Color	Number of Rows	Read Out	Contact Type	Gender	Mounting Type	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Features
EDAC Inc. 357-044-557-112	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Gold	44	1	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	-40 °C	105 ░C	Non Specified - Dual Edge	Wire Wrap	0.156 in	3.96 mm	88	Black	2	Dual	Semi Bellows	Female	Through Hole Right Angle	Polyester Thermoplastic	10 Áin	0.25 Ám
EDAC Inc. 357-044-553-158	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Gold	44	1		4-40 Flush Mount Threaded Insert Top Opening		-40 °C	105 ░C	Non Specified - Dual Edge	Solder	0.156 in	3.96 mm	88	Black	2	Dual	Semi Bellows	Female	Through Hole Right Angle	Polyester Thermoplastic	10 Áin	0.25 Ám	Card Guides
EDAC Inc. 357-044-521-112	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Gold	44	1	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	-40 °C	105 ░C	Non Specified - Dual Edge	Solder	0.156 in	3.96 mm	88	Black	2	Dual	Semi Bellows	Female	Through Hole	Polyester Thermoplastic	10 Áin	0.25 Ám
EDAC Inc. 357-044-540-207	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Gold	22	2		Flush Mount M3 Threaded Insert Top Opening		-40 °C	105 ░C	Non Specified - Dual Edge	Wire Wrap	0.156 in	3.96 mm	44	Black	2	Dual	Semi Bellows	Female	Through Hole	Polyester Thermoplastic	10 Áin	0.25 Ám
EDAC Inc. 357-044-505-158	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Gold	44	1		4-40 Flush Mount Threaded Insert Top Opening		-40 °C	105 ░C	Non Specified - Single Edge	Solder Eyelet(s)	0.156 in	3.96 mm	44	Black	1	Single	Semi Bellows	Female	Through Hole	Polyester Thermoplastic	10 Áin	0.25 Ám	Card Guides
EDAC Inc. 357-044-521-168	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Gold	44	1		4-40 Flush Mount Threaded Insert Top Opening		-40 °C	105 ░C	Non Specified - Dual Edge	Solder	0.156 in	3.96 mm	88	Black	2	Dual	Semi Bellows	Female	Through Hole	Polyester Thermoplastic	10 Áin	0.25 Ám	Card Guides
EDAC Inc. 357-044-400-278	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Tin	22	2		4-40 Flush Mount Threaded Insert Top Opening		-40 °C	105 ░C	Non Specified - Dual Edge	Solder Eyelet(s)	0.156 in	3.96 mm	44	Black	2	Dual	Semi Bellows	Female	Through Hole	Polyester Thermoplastic			Card Guides
EDAC Inc. 357-044-547-108	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Gold	44	1		4-40 Flush Mount Threaded Insert Top Opening		-40 °C	105 ░C	Non Specified - Single Edge	Wire Wrap	0.156 in	3.96 mm	44	Black	1	Single	Semi Bellows	Female	Through Hole	Polyester Thermoplastic	10 Áin	0.25 Ám
EDAC Inc. 357-044-459-208	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Tin	22	2		4-40 Flush Mount Threaded Insert Top Opening		-40 °C	105 ░C	Non Specified - Dual Edge	Solder	0.156 in	3.96 mm	44	Black	2	Dual	Semi Bellows	Female	Through Hole Right Angle	Polyester Thermoplastic
EDAC Inc. 357-044-554-102	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Gold	44	1	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	-40 °C	105 ░C	Non Specified - Dual Edge	Solder Eyelet(s)	0.156 in	3.96 mm	88	Black	2	Dual	Semi Bellows	Female	Surface Mount	Polyester Thermoplastic	10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 23.84
Newark	Each	1	$ 27.70
		100	$ 16.02
		250	$ 14.51
		500	$ 12.67
		1000	$ 10.31

Description

General part information

357-044 Series

44 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
