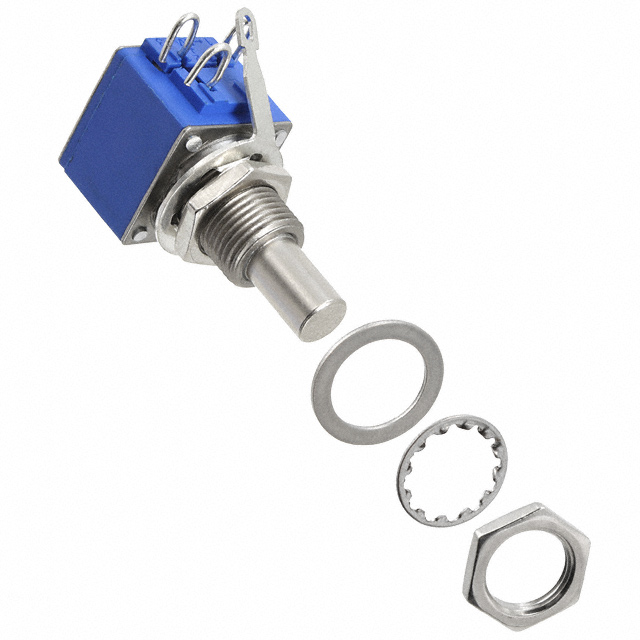

82A1D-Z28-BA0/254L
ActiveBourns Inc.
ROTARY POTENTIOMETER, CONDUCTIVE PLASTIC, 500 KOHM, 1 TURNS, LINEAR, 250 MW, ± 10%, 82 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
82A1D-Z28-BA0/254L
ActiveBourns Inc.
ROTARY POTENTIOMETER, CONDUCTIVE PLASTIC, 500 KOHM, 1 TURNS, LINEAR, 250 MW, ± 10%, 82 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 82A1D-Z28-BA0/254L |
|---|---|
| Actuator Diameter [diameter] | 5.97 mm |
| Actuator Diameter [diameter] | 0.235 in |
| Actuator Length [z] | 0.688 in |
| Actuator Length [z] | 17.48 mm |
| Actuator Type | Knurled and Slotted |
| Adjustment Type | User Defined |
| Built in Switch | False |
| Bushing Thread | 3/8-32 |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power (Watts) | 0.25 W |
| Power (Watts) | 250 mW |
| Resistance (Ohms) | 500 kOhms |
| Resistive Material | Conductive Plastic |
| Rotation | 300 ░ |
| Size - Body [x] | 0.625 in |
| Size - Body [x] | 15.88 mm |
| Size - Body [y] | 15.88 mm |
| Size - Body [y] | 0.625 in |
| Taper | Logarithmic |
| Temperature Coefficient | 1000 ppm/°C |
| Termination Style | Solder Hook |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Newark | Each | 50 | $ 19.98 | |
| 100 | $ 19.97 | |||
Description
General part information
82A1D Series
500k Ohm 1 Gang Logarithmic Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.25W, 1/4W Solder Hook
