BCD48BH120T120A00

Obsolete

Vicor Corporation

HALF-CHIP BUS CONVERTER EVAL BOA

Search across all available documentation for this part.

Obsolete

Vicor Corporation

HALF-CHIP BUS CONVERTER EVAL BOA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

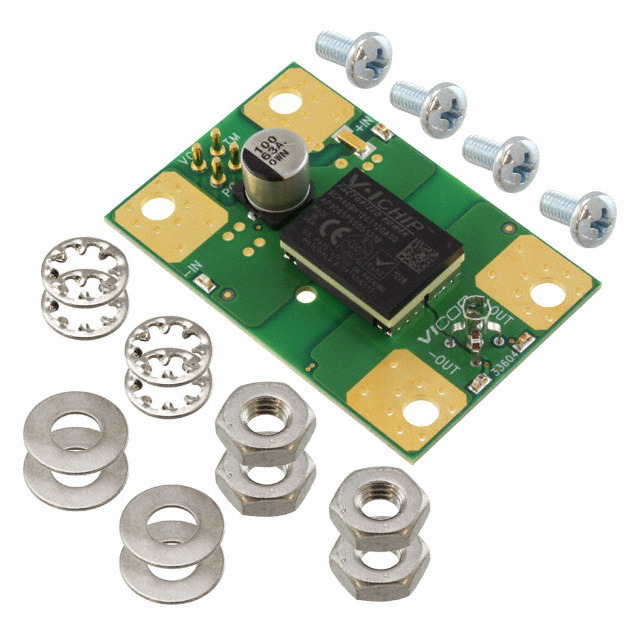

BCM48BH120T120A VI Chip® BCM® DC/DC, Step Down 1, Isolated Outputs Evaluation Board

Technical documentation and resources

Specification	BCD48BH120T120A00	BCD48 Series

Board Type	Fully Populated	Fully Populated
Current - Output	11.3 A	11.3 - 30 A
Frequency - Switching	1.75 MHz	1.55 - 1.95 MHz
Main Purpose	DC/DC, Step Down	DC/DC, Step Down
Outputs and Type	Isolated	Isolated
Outputs and Type	1	1
Regulator Topology	Buck	Buck
Supplied Contents	Board(s)	Board(s)
Utilized IC / Part	BCM48BH120T120A	BCM48Bx240y300A00, BCM48Bx096y240A00, BCM48BH120T120A, BCM48Bx120y300A00
Voltage - Output	12 V	9.6 - 24 V

Part	Current - Output	Main Purpose	Utilized IC / Part	Board Type	Frequency - Switching	Supplied Contents	Voltage - Output	Regulator Topology	Outputs and Type	Outputs and Type
Vicor Corporation BCD48BF240T300A00	12 A	DC/DC, Step Down	BCM48Bx240y300A00	Fully Populated	1.77 MHz	Board(s)	24 V	Buck	Isolated	1
Vicor Corporation BCD48BF096T240A00	25 A	DC/DC, Step Down	BCM48Bx096y240A00	Fully Populated	1.55 MHz	Board(s)	9.6 V	Buck	Isolated	1
Vicor Corporation BCD48BH120T120A00	11.3 A	DC/DC, Step Down	BCM48BH120T120A	Fully Populated	1.75 MHz	Board(s)	12 V	Buck	Isolated	1
Vicor Corporation BCD48BF120T300A00	30 A	DC/DC, Step Down	BCM48Bx120y300A00	Fully Populated	1.95 MHz	Board(s)	12 V	Buck	Isolated	1
