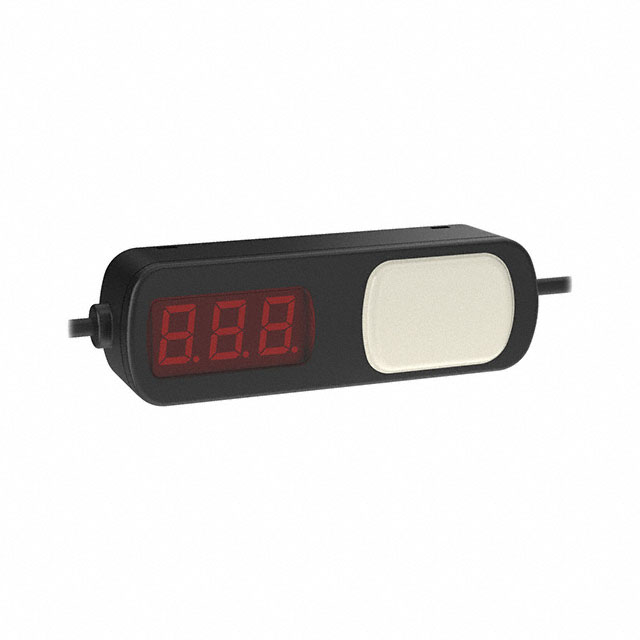

PTL110S-LD3-QP150

Active

BANNER ENGINEERING

PTL NODE 100MM INDIC M12-4

Search across all available documentation for this part.

Active

BANNER ENGINEERING

PTL NODE 100MM INDIC M12-4

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Termination Style	Approval Agency	Mounting Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection
BANNER ENGINEERING PTL110S-LD3-QP150	30 VDC	10 VDC	Cable with Connector (M12)	CE cULus	Chassis Mount	LED Display	-40 °C	50 °C	IEC IP54
BANNER ENGINEERING PTL110S-FF200TD3-QP150	30 VDC	10 VDC	Cable with Connector (M12)	CE cULus	Chassis Mount	LED Display	-40 °C	50 °C	IEC IP54
BANNER ENGINEERING PTL110S-FF100L-QP150	30 VDC	10 VDC	Cable with Connector (M12)	CE cULus	Chassis Mount		-40 °C	50 °C	IEC IP54
BANNER ENGINEERING PTL110S-T-QP150	30 VDC	10 VDC	Cable with Connector (M12)	CE cULus	Chassis Mount		-40 °C	50 °C	IEC IP54
BANNER ENGINEERING PTL110S-FF100TD3-QP150	30 VDC	10 VDC	Cable with Connector (M12)	CE cULus	Chassis Mount	LED Display	-40 °C	50 °C	IEC IP54
BANNER ENGINEERING PTL110S-FF100T-QP150	30 VDC	10 VDC	Cable with Connector (M12)	CE cULus	Chassis Mount		-40 °C	50 °C	IEC IP54
BANNER ENGINEERING PTL110S-FF100TD3-QPS150	30 VDC	10 VDC	Cable with Connector (M12)	CE cULus	Chassis Mount	LED Display	-40 °C	50 °C	IEC IP54
BANNER ENGINEERING PTL110S-FF200L-QP150	30 VDC	10 VDC	Cable with Connector (M12)	CE cULus	Chassis Mount		-40 °C	50 °C	IEC IP54
BANNER ENGINEERING PTL110S-TD3-QP150	30 VDC	10 VDC	Cable with Connector (M12)	CE cULus	Chassis Mount	LED Display	-40 °C	50 °C	IEC IP54
BANNER ENGINEERING PTL110S-FF200LD3-QP150	30 VDC	10 VDC	Cable with Connector (M12)	CE cULus	Chassis Mount	LED Display	-40 °C	50 °C	IEC IP54

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 173.00
Newark	Each	1	$ 173.00

General part information

PTL NODE 100MM INDIC M12-4

Technical documentation and resources
