917724-2

Active

TE Connectivity AMP Connectors

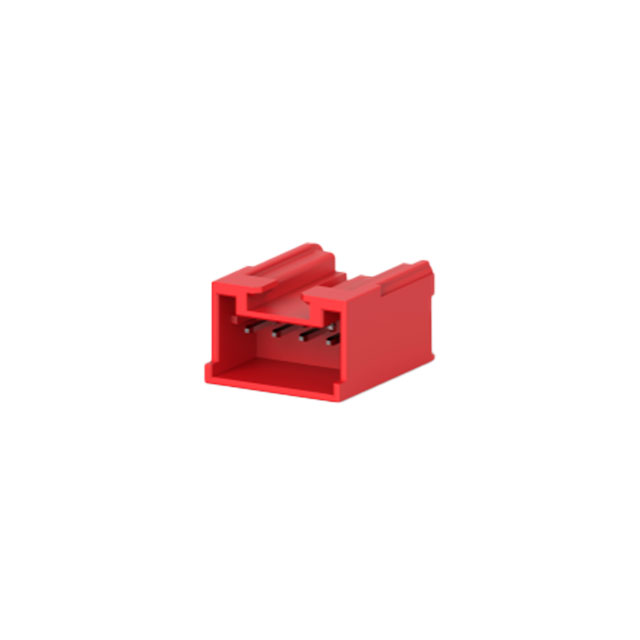

CONN HEADER VERT 4POS 2.5MM

Deep-Dive with AI

Search across all available documentation for this part.

917724-2

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 4POS 2.5MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10560	$ 0.29

Description

General part information

917724 Series

Connector Header Through Hole 4 position 0.098" (2.50mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	917724-2	917724 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Length - Mating	0.185 in	0.185 in
Contact Length - Mating	4.7 mm	4.7 mm
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Latch Holder	Latch Holder
Features	Board Guide	Board Guide
Insulation Color	Red	Yellow, Blue, Red
Insulation Height	15.29 mm	15.29 mm
Insulation Height	0.602 in	0.602 in
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights [z]	19.2 mm	19.2 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	4	4
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-30 ░C	-30 ░C
Overall Contact Length	15.9 mm	15.9 mm
Overall Contact Length	0.626 in	0.626 in
Pitch - Mating	2.5 mm	2.5 mm
Pitch - Mating	0.098 in	0.098 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Kinked Pin, Solder	Kinked Pin, Solder
Voltage Rating	50 V	50 V

917724 Series

CONN HEADER VERT 4POS 2.5MM

Part	Termination	Features	Contact Shape	Number of Positions	Applications	Connector Type	Current Rating (Amps)	Insulation Material	Number of Rows	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Contact Material	Style	Mated Stacking Heights [z]	Contact Type	Fastening Type	Contact Finish - Post	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Number of Positions Loaded	Contact Length - Post	Contact Length - Post [x]	Mounting Type	Insulation Color	Pitch - Mating	Pitch - Mating	Voltage Rating
TE Connectivity AMP Connectors 917724-4	Kinked Pin, Solder	Board Guide	Square	4	General Purpose	Header	3 A	Polyamide (PA66), Nylon 6/6, Glass Filled	1	15.9 mm	0.626 in	0.185 in	4.7 mm	UL94 V-0	Copper Alloy	Board to Cable/Wire	19.2 mm	Male Pin	Latch Holder	Tin	15.29 mm	0.602 in	-30 ░C	105 ░C	Shrouded - 4 Wall	All	3.2 mm	0.126 in	Through Hole	Yellow	2.5 mm	0.098 in	50 V
TE Connectivity AMP Connectors 917724-6	Kinked Pin, Solder	Board Guide	Square	4	General Purpose	Header	3 A	Polyamide (PA66), Nylon 6/6, Glass Filled	1	15.9 mm	0.626 in	0.185 in	4.7 mm	UL94 V-0	Copper Alloy	Board to Cable/Wire	19.2 mm	Male Pin	Latch Holder	Tin	15.29 mm	0.602 in	-30 ░C	105 ░C	Shrouded - 4 Wall	All	3.2 mm	0.126 in	Through Hole	Blue	2.5 mm	0.098 in	50 V
TE Connectivity AMP Connectors 917724-2	Kinked Pin, Solder	Board Guide	Square	4	General Purpose	Header	3 A	Polyamide (PA66), Nylon 6/6, Glass Filled	1	15.9 mm	0.626 in	0.185 in	4.7 mm	UL94 V-0	Copper Alloy	Board to Cable/Wire	19.2 mm	Male Pin	Latch Holder	Tin	15.29 mm	0.602 in	-30 ░C	105 ░C	Shrouded - 4 Wall	All	3.2 mm	0.126 in	Through Hole	Red	2.5 mm	0.098 in	50 V
