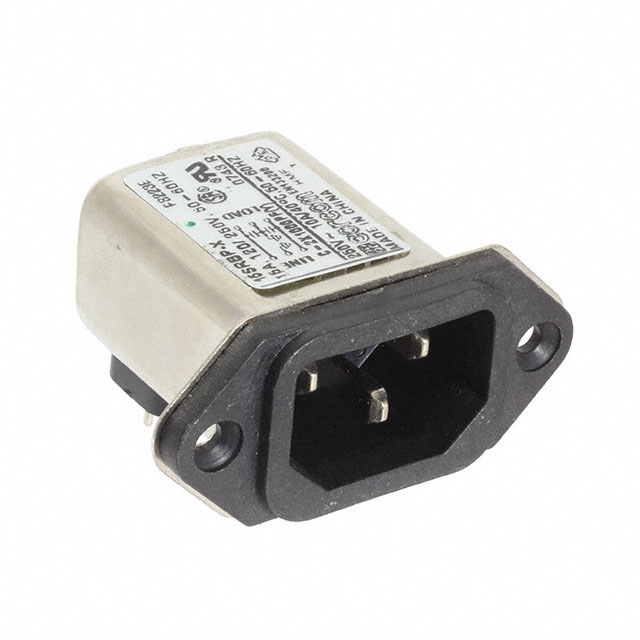

4-6609987-2

Active

TE Connectivity Raychem Cable Protection

PWR ENT RCPT IEC320-C14 PNL SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCorcom EMI/RFI Filter Selector Chart

4-6609987-2

Active

TE Connectivity Raychem Cable Protection

PWR ENT RCPT IEC320-C14 PNL SLDR

Deep-Dive with AI

DocumentsCorcom EMI/RFI Filter Selector Chart

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4-6609987-2

Accomodates a Fuse	False
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	15 A
Current Rating - Filter	15 A
Features	Shielded
Filter Type	Filtered (EMI, RFI) - Commercial
Mounting Type	Panel Mount, Flange, Through Hole, Right Angle
Panel Cutout Dimensions [x]	30.48 mm
Panel Cutout Dimensions [y]	22.86 mm
Termination	Solder
Voltage Rating - Appliance Inlet [Max]	250 VAC
Voltage Rating - Appliance Inlet [Min]	120 VAC

6609987 Series

Part	Features	Connector Type	Approval Agency	Connector Style	Termination	Termination	Termination	Panel Cutout Dimensions	Mounting Type	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet [Max]	Voltage Rating - Appliance Inlet [Min]	Filter Type	Current Rating - Filter	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]
TE Connectivity Raychem Cable Protection 6609987-5	Front or Rear Side Mount Shielded	Male Blades Receptacle	CSA UL VDE	IEC 320-C14	0.25 in	6.3 mm	Quick Connect	Variable Size	Flange Panel Mount	15 A	250 VAC	120 VAC	Filtered (EMI RFI) - Commercial	15 A
TE Connectivity Raychem Cable Protection 2-6609987-7	Shielded	Male Blades Receptacle	CSA UL VDE	IEC 320-C14	0.25 in	6.3 mm	Quick Connect	Variable Size	Panel Mount Snap-In	15 A	250 VAC	120 VAC	Filtered (EMI RFI) - Commercial	15 A	1.73 mm	0.79 mm	0.031 "	0.068 in
TE Connectivity Raychem Cable Protection 3-6609987-7	Shielded	Male Blades Receptacle	CSA UL VDE	IEC 320-C14			Solder	Variable Size	Panel Mount Flange Through Hole Right Angle	15 A	250 VAC	120 VAC	Filtered (EMI RFI) - Commercial	15 A	1.73 mm	0.79 mm	0.031 "	0.068 in
TE Connectivity Raychem Cable Protection 4-6609987-7	Shielded	Male Blades Receptacle	CSA UL VDE	IEC 320-C14	0.25 in	6.3 mm	Quick Connect		Flange Panel Mount Right Angle	15 A	250 VAC	120 VAC	Filtered (EMI RFI) - Commercial	15 A					22.86 mm	30.48 mm
TE Connectivity Raychem Cable Protection 6609987-2	Front or Rear Side Mount Shielded	Male Blades Receptacle	CSA UL VDE	IEC 320-C14	0.25 in	6.3 mm	Quick Connect	Variable Size	Flange Panel Mount	15 A	250 VAC	120 VAC	Filtered (EMI RFI) - Commercial	15 A
TE Connectivity Raychem Cable Protection 3-6609987-9	Shielded	Male Blades Receptacle	CSA UL VDE	IEC 320-C14			Solder		Panel Mount Flange Through Hole Right Angle	15 A	250 VAC	120 VAC	Filtered (EMI RFI) - Commercial	15 A					22.86 mm	30.48 mm
TE Connectivity Raychem Cable Protection 4-6609987-6	Shielded	Male Blades Receptacle	CSA UL VDE	IEC 320-C14	0.25 in	6.3 mm	Quick Connect		Flange Panel Mount Right Angle	15 A	250 VAC	120 VAC	Filtered (EMI RFI) - Commercial	15 A					22.86 mm	30.48 mm
TE Connectivity Raychem Cable Protection 6609987-9	Front or Rear Side Mount Shielded	Male Blades Receptacle	CSA UL VDE	IEC 320-C14	0.25 in	6.3 mm	Quick Connect	Variable Size	Flange Panel Mount	15 A	250 VAC	120 VAC	Filtered (EMI RFI) - Commercial	15 A
TE Connectivity Raychem Cable Protection 2-6609987-1	Shielded	Male Blades Receptacle	CSA UL VDE	IEC 320-C14	0.25 in	6.3 mm	Quick Connect	Variable Size	Panel Mount Snap-In	15 A	250 VAC	120 VAC	Filtered (EMI RFI) - Commercial	15 A	1.73 mm	0.79 mm	0.031 "	0.068 in
TE Connectivity Raychem Cable Protection 4-6609987-2	Shielded	Male Blades Receptacle	CSA UL VDE	IEC 320-C14			Solder		Panel Mount Flange Through Hole Right Angle	15 A	250 VAC	120 VAC	Filtered (EMI RFI) - Commercial	15 A					22.86 mm	30.48 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 3.46

Description

General part information

6609987 Series

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
