3220-14-0300-00-TR
ActiveCnC Tech, LLC

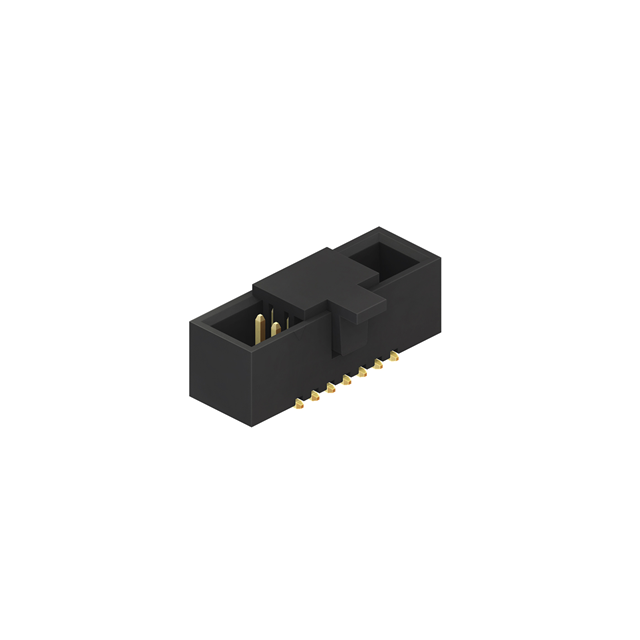

CONN HEADER SMD 14POS 1.27MM
Deep-Dive with AI
Search across all available documentation for this part.
3220-14-0300-00-TR
ActiveCnC Tech, LLC
CONN HEADER SMD 14POS 1.27MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3220-14-0300-00-TR |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Pick and Place, Keying Slot |
| Insulation Color | Black |
| Insulation Height | 5.4 mm |
| Insulation Height [z] | 0.213 in |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 14 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 50 VAC |
3220-14 Series
| Part | Material Flammability Rating | Voltage Rating | Connector Type | Number of Rows | Contact Type | Termination | Row Spacing - Mating | Row Spacing - Mating | Mounting Type | Number of Positions Loaded | Insulation Height | Insulation Height [z] | Shrouding | Contact Material | Contact Finish Thickness - Mating | Contact Finish - Mating | Insulation Color | Number of Positions | Insulation Material | Contact Shape | Style | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post | Contact Length - Post | Features | Fastening Type | Contact Finish Thickness - Post | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CnC Tech, LLC | UL94 V-0 | 50 VAC | Header | 2 | Male Pin | Solder | 0.05 in | 1.27 mm | Through Hole | All | 5.4 mm | 0.213 in | Shrouded - 4 Wall | Brass | Flash | Gold | Black | 14 | Nylon 9T Polyamide (PA9T) | Square | Board to Cable/Wire | 0.05 in | 1.27 mm | -40 °C | 105 ░C | 0.083 in | 2.11 mm | Keying Slot | Push-Pull | ||
CnC Tech, LLC | UL94 V-0 | 50 VAC | Header | 2 | Male Pin | Solder | 0.05 in | 1.27 mm | Surface Mount | All | 5.4 mm | 0.213 in | Shrouded - 4 Wall | Brass | Flash | Gold | Black | 14 | Nylon 9T Polyamide (PA9T) | Square | Board to Cable/Wire | 0.05 in | 1.27 mm | -40 °C | 105 ░C | Keying Slot Pick and Place | Push-Pull | Flash | Gold | ||
CnC Tech, LLC | UL94 V-0 | 50 VAC | Header | 2 | Male Pin | Solder | 0.05 in | 1.27 mm | Surface Mount | All | 5.4 mm | 0.213 in | Shrouded - 4 Wall | Brass | Flash | Gold | Black | 14 | Nylon 9T Polyamide (PA9T) | Square | Board to Cable/Wire | 0.05 in | 1.27 mm | -40 °C | 105 ░C | Keying Slot | Push-Pull | Flash | Gold |
