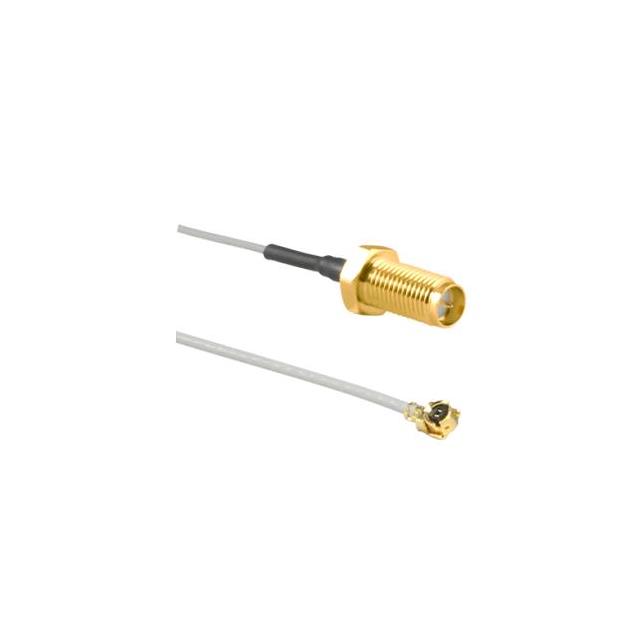

CSB-RGFB-102-UFFR

Active

TE Connectivity Linx

CBL ASSY U.FL-RPSMA JCK-PL 4.01"

Search across all available documentation for this part.

Active

TE Connectivity Linx

CBL ASSY U.FL-RPSMA JCK-PL 4.01"

Technical Specifications

Parameters and characteristics for this part

Specification	CSB-RGFB-102-UFFR

1st Connector	RP-SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Male
2nd Connector	U.FL (UMCC) Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-178
Color	Copper
Frequency - Max [Max]	6000 MHz
Length	101.85 mm
Length	4.01 in
Operating Temperature	105 C
Overall Impedance	50 Ohms
Style	U.FL (UMCC) to RP-SMA

Part	1st Contact Gender	2nd Connector	1st Connector Mounting Feature	Frequency - Max [Max]	Length	Length	2nd Connector Mounting Type	2nd Contact Gender	1st Connector Mounting Type	1st Connector	Operating Temperature	Overall Impedance	Cable Type	Color	Style	Cable Impedance
TE Connectivity Linx CSB-RGFB-102-UFFR	Male	U.FL (UMCC) Plug Right Angle	Bulkhead - Front Side Nut	6000 MHz	101.85 mm	4.01 in	Free Hanging (In-Line)	Female	Panel Mount	RP-SMA Jack	105 C	50 Ohms	RG-178	Copper	U.FL (UMCC) to RP-SMA	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial U.FL (UMCC) to RP-SMA RG-178 4.010" (101.85mm)
