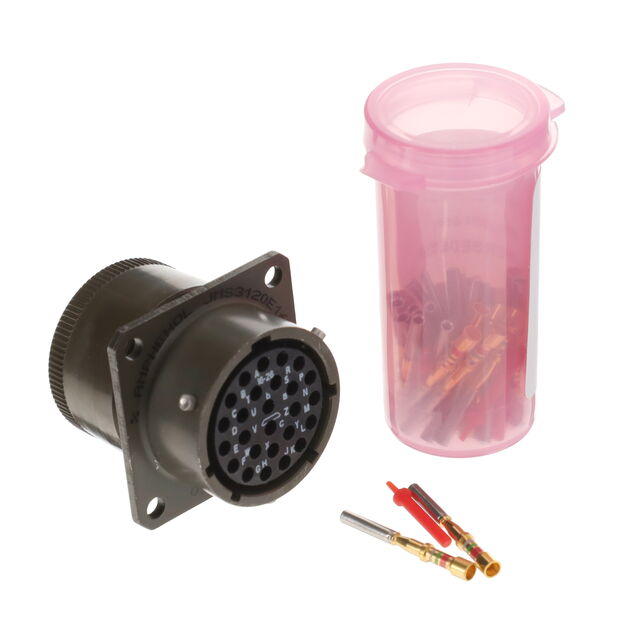

MS3120E16-26S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Search across all available documentation for this part.
MS3120E16-26S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3120E16-26S | MS3120E16 Series |
|---|---|---|
| - | - | |
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Military, Mass Transit, Instrumentation, Aerospace, Industrial, Communication Systems |
| Backshell Material, Plating | - | Aluminum, Olive Drab Chromate over Cadmium |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Female Sockets | Receptacle, Male Pins, Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 7.5 - 13 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | - | Backshell |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Flange | Flange |
| Number of Positions | 26 | 8 - 26 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N, W |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert [Max] | 26 | 26 |
| Shell Size - Insert [Min] | 16 | 16 |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 VAC | 600 - 1000 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 80.68 | |
| 10 | $ 74.04 | |||
| 25 | $ 71.19 | |||
| 50 | $ 68.82 | |||
| 100 | $ 65.02 | |||
MS3120E16 Series
RECEPT
| Part | Contact Material | Fastening Type | Grade | Color | Primary Material | Mounting Feature | Shielding | Voltage Rating | Ingress Protection | Number of Positions | Insert Material | Orientation | Shell Material | Shell Finish | Applications | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Qualification | Termination | Connector Type | Current Rating (Amps) | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Backshell Material, Plating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3120E16-26S(LC) | ||||||||||||||||||||||||||
Amphenol Industrial Operations MS3120E16-8B | ||||||||||||||||||||||||||
Amphenol Industrial Operations MS3120E16-8P | Copper Alloy | Bayonet Lock | Military | Olive Drab | Metal | Flange | Unshielded | 1000 VAC | Environment Resistant | 8 | Neoprene | N | Aluminum | Olive Drab Chromate over Cadmium | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Gold | -55 °C | 125 °C | MIL-DTL-26482 Series I | Crimp | Male Pins, Receptacle | 13 A | ||||
Amphenol Industrial Operations MS3120E16-26S | Copper Alloy | Bayonet Lock | Military | Olive Drab | Metal | Flange | Unshielded | 600 VAC | Environment Resistant | 26 | Neoprene | N | Aluminum | Olive Drab Chromate over Cadmium | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Gold | -55 °C | 125 °C | MIL-DTL-26482 Series I | Crimp | Receptacle, Female Sockets | 7.5 A | 16 | 26 | ||
Amphenol Industrial Operations MS3120E16-26PW | Copper Alloy | Bayonet Lock | Military | Olive Drab | Metal | Flange | Unshielded | Environment Resistant | 26 | Neoprene | W | Aluminum | Olive Drab Chromate over Cadmium | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Gold | -55 °C | 125 °C | MIL-DTL-26482 Series I | Crimp | Male Pins, Receptacle | 16 | 26 | Aluminum, Olive Drab Chromate over Cadmium | Backshell | ||
Amphenol Industrial Operations MS3120E16-8A | ||||||||||||||||||||||||||
Amphenol Industrial Operations MS3120E16-8S | Copper Alloy | Bayonet Lock | Military | Olive Drab | Metal | Flange | Unshielded | 1000 VAC | Environment Resistant | 8 | Neoprene | N | Aluminum | Olive Drab Chromate over Cadmium | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Gold | -55 °C | 125 °C | MIL-DTL-26482 Series I | Crimp | Receptacle, Female Sockets | 13 A | ||||
Amphenol Industrial Operations MS3120E16-26B | ||||||||||||||||||||||||||
Amphenol Industrial Operations MS3120E16-26P | Copper Alloy | Bayonet Lock | Military | Olive Drab | Metal | Flange | Unshielded | Environment Resistant | 26 | Neoprene | N | Aluminum | Olive Drab Chromate over Cadmium | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Gold | -55 °C | 125 °C | MIL-DTL-26482 Series I | Crimp | Male Pins, Receptacle | 16 | 26 | Aluminum, Olive Drab Chromate over Cadmium | Backshell |
Description
General part information
MS3120E16 Series
26 Position Circular Connector Receptacle, Female Sockets Crimp
