STL025PC2DC018N

Active

TE Connectivity Aerospace, Defense and Marine

WDUALOBE CONNECTOR

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

WDUALOBE CONNECTOR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

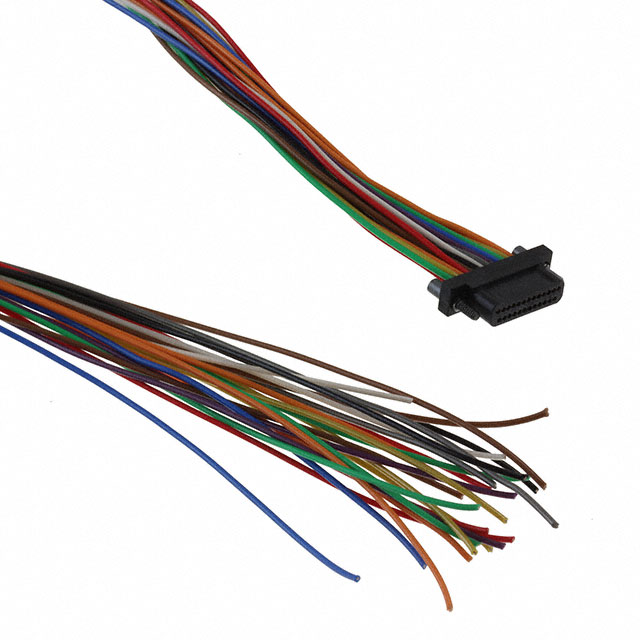

25 Position Cable Assembly Rectangular Plug to Individual Wire Leads 1.00' (304.80mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	STL025PC2DC018N	STL025 Series

	-	-
Cable Termination	Crimp	Crimp
Color	Multiple, Individual	Multiple, Individual
Connector Style	-	D-Type, Nano-D
Connector Type	Plug to Individual Wire Leads	Socket to Individual Wire Leads, Receptacle, Female Sockets, Plug to Individual Wire Leads
Contact Finish	Nickel	Gold, Nickel
Contact Material	-	Beryllium Copper
Contact Type	-	Signal
Dielectric Material	-	Liquid Crystal Polymer (LCP)
Length	1 ft	1 ft
Length	304.8 mm	304.8 mm
Mounting Type	-	Surface Mount, Right Angle
Number of Rows	2	2
Shell Size, Connector Layout	-	DB, B
Shell Size, Connector Layout	-	3
Shielding	Unshielded	Unshielded
Termination	-	Solder

STL02511378PCN = SMT CONN

Part	Length	Length	Connector Type	Cable Termination	Number of Rows	Shielding	Color	Dielectric Material	Contact Material	Termination	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish	Connector Style	Contact Type	Mounting Type
TE Connectivity Aerospace, Defense and Marine STL02511378PCN
TE Connectivity Aerospace, Defense and Marine STL025SC2DC012N	1 ft	304.8 mm	Socket to Individual Wire Leads	Crimp	2	Unshielded	Individual, Multiple
TE Connectivity Aerospace, Defense and Marine STL02510415SCQ
TE Connectivity Aerospace, Defense and Marine STL025L2AN			Receptacle, Female Sockets		2			Liquid Crystal Polymer (LCP)	Beryllium Copper	Solder	B, DB	3	Gold	D-Type, Nano-D	Signal	Surface Mount, Right Angle
TE Connectivity Aerospace, Defense and Marine STL025M5CN
TE Connectivity Aerospace, Defense and Marine STL025PC2DC018N	1 ft	304.8 mm	Plug to Individual Wire Leads	Crimp	2	Unshielded	Individual, Multiple						Nickel
TE Connectivity Aerospace, Defense and Marine STL025T2AN			Receptacle, Female Sockets		2			Liquid Crystal Polymer (LCP)	Beryllium Copper	Solder	B, DB	3	Gold	D-Type, Nano-D	Signal	Surface Mount, Right Angle
TE Connectivity Aerospace, Defense and Marine STL025C5N
