Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A7MFG-3706G | A7MFG Series |
|---|---|---|
| 1st Connector | Receptacle, Female Sockets | Receptacle, Female Sockets |
| 2nd Connector | Plug, Male Pins | Plug, Male Pins |
| Color | - | Ribbon, Multiple |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 10 Áin | 10 Áin |
| Contact Finish Thickness | 0.25 Ám | 0.25 Ám |
| Length | 6 ft | 6 - 10 ft |
| Length | 1.83 m | 1.83 - 3.05 m |
| Number of Positions | 37 | 9 - 37 |
| Shielding | Unshielded | Unshielded |
| Type | DB37 | DB37, DB9, DB25, DB15 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
A7MFG Series
DSUB CABL-AMP37G/ AE37M / AFP37G
| Part | Length | Length | 2nd Connector | 1st Connector | Number of Positions | Type | Color | Shielding | Contact Finish | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A7MFG-3706M | 6 ft | 1.83 m | Plug, Male Pins | Female Sockets, Receptacle | 37 | DB37 | Multiple, Ribbon | Unshielded | Gold | 10 Áin | 0.25 Ám |
TE Connectivity AMP Connectors A7MFG-0910M | 10 ft | 3.05 m | Plug, Male Pins | Female Sockets, Receptacle | 9 | DB9 | Multiple, Ribbon | Unshielded | Gold | 10 Áin | 0.25 Ám |
TE Connectivity AMP Connectors A7MFG-3710G | 10 ft | 3.05 m | Plug, Male Pins | Female Sockets, Receptacle | 37 | DB37 | Unshielded | Gold | 10 Áin | 0.25 Ám | |
TE Connectivity AMP Connectors A7MFG-3710M | 10 ft | 3.05 m | Plug, Male Pins | Female Sockets, Receptacle | 37 | DB37 | Multiple, Ribbon | Unshielded | Gold | 10 Áin | 0.25 Ám |
TE Connectivity AMP Connectors A7MFG-2506M | 6 ft | 1.83 m | Plug, Male Pins | Female Sockets, Receptacle | DB25 | Multiple, Ribbon | Unshielded | Gold | 10 Áin | 0.25 Ám | |
TE Connectivity AMP Connectors A7MFG-0906G | 6 ft | 1.83 m | Plug, Male Pins | Female Sockets, Receptacle | 9 | DB9 | Unshielded | Gold | 10 Áin | 0.25 Ám | |
TE Connectivity AMP Connectors A7MFG-1510G | 10 ft | 3.05 m | Plug, Male Pins | Female Sockets, Receptacle | 15 | DB15 | Unshielded | Gold | 10 Áin | 0.25 Ám | |
TE Connectivity AMP Connectors A7MFG-3706G | 6 ft | 1.83 m | Plug, Male Pins | Female Sockets, Receptacle | 37 | DB37 | Unshielded | Gold | 10 Áin | 0.25 Ám | |
TE Connectivity AMP Connectors A7MFG-2506G | 6 ft | 1.83 m | Plug, Male Pins | Female Sockets, Receptacle | DB25 | Unshielded | Gold | 10 Áin | 0.25 Ám | ||
TE Connectivity AMP Connectors A7MFG-1510M | 10 ft | 3.05 m | Plug, Male Pins | Female Sockets, Receptacle | 15 | DB15 | Multiple, Ribbon | Unshielded | Gold | 10 Áin | 0.25 Ám |
Description
General part information
A7MFG Series

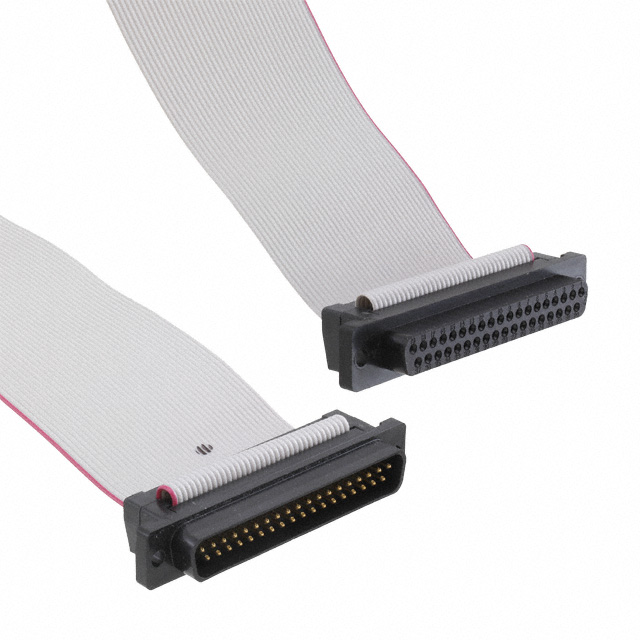

D-Sub Cable Assembly DB37 Gray, Ribbon 6.00' (1.83m) Receptacle, Female Sockets to Plug, Male Pins Unshielded
Documents
Technical documentation and resources
