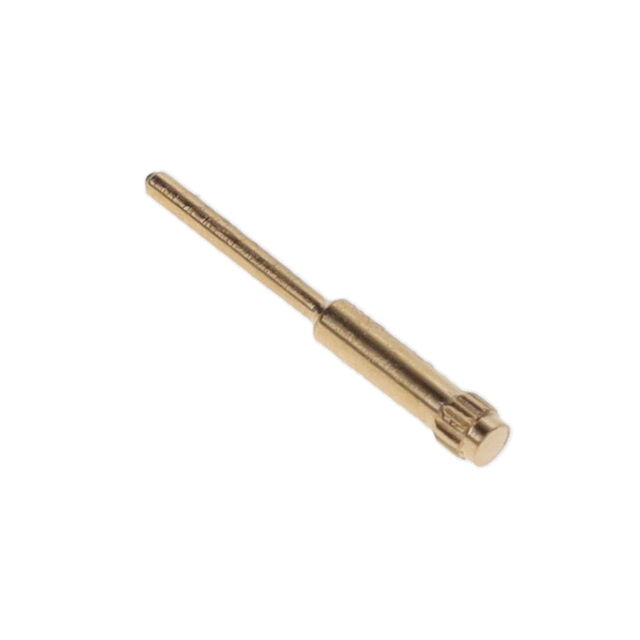

1267-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.018DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1267-0-00-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 0.032 in |
| Flange Diameter [diameter] | 0.81 mm |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 3.96 mm |
| Length - Above Flange [x] | 0.156 in |
| Length - Overall [x] | 0.291 in |
| Length - Overall [x] | 7.39 mm |
| Mounting Hole Diameter [diameter] | 0.035 in |
| Mounting Hole Diameter [diameter] | 0.89 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.46 mm |
| Pin Size - Above Flange [diameter] | 0.018 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Knurled, Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.54 | |
| 10 | $ 0.45 | |||
| 25 | $ 0.43 | |||
| 50 | $ 0.42 | |||
| 100 | $ 0.41 | |||
| 250 | $ 0.37 | |||
| 500 | $ 0.33 | |||
| 1000 | $ 0.33 | |||
Description
General part information
1267-0 Series
PC Pin Terminal Connector Through Hole Gold 0.018" (0.46mm) Dia
