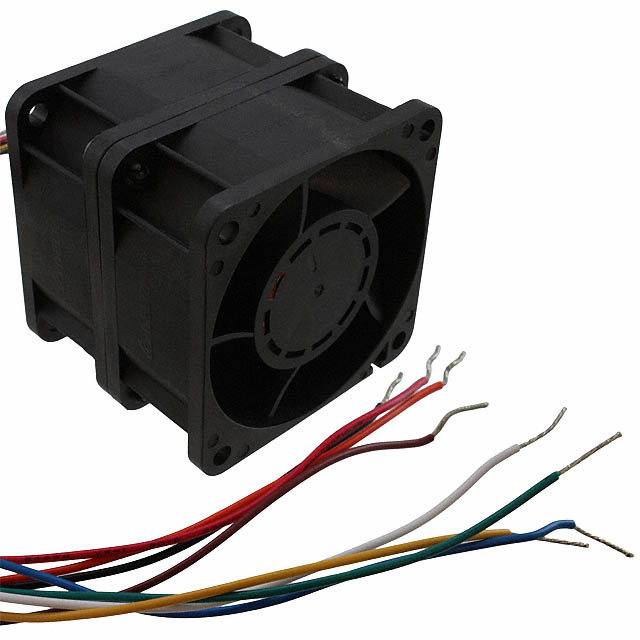

GFC0612DS-AQ14

Obsolete

Delta Electronics

FAN AXIAL DUAL 60X56MM 12VDC

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL DUAL 60X56MM 12VDC

Technical Specifications

Parameters and characteristics for this part

Specification	GFC0612DS-AQ14

Air Flow	1.82 mł/min
Air Flow	65 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	1.6 A
Fan Type	Tubeaxial (Dual)
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	19.2 W
RPM [custom]	10400 RPM
RPM [custom]	9500 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	2.007 in H2O
Static Pressure	499.9 Pa
Termination	4 Wire Leads per Fan
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	10.8 VDC
Weight	0.364 lb
Weight	165.11 g
Width [x]	56 mm

Part	Material - Blade	Size / Dimension [x]	Size / Dimension [y]	Static Pressure	Static Pressure	Power (Watts)	Current Rating (Amps)	Approval Agency	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Weight	Weight	Termination	Features	Width [x]	Air Flow	Air Flow	Material - Frame	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Voltage - Rated	Fan Type	Bearing Type	RPM [custom]	RPM [custom]
Delta Electronics GFC0612DS-AQ14	Plastic	60 mm	60 mm	2.007 in H2O	499.9 Pa	19.2 W	1.6 A	CE CSA UL VDE	50000 Hrs	13.2 VDC	10.8 VDC	0.364 lb	165.11 g	4 Wire Leads per Fan	Locked Rotor Protection PWM Control Speed Sensor (Tach)	56 mm	1.82 mł/min	65 CFM	Plastic	-10 °C	-10 °C	60 °C	60 °C	12 VDC	Tubeaxial (Dual)	Ball	10400 RPM	9500 RPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial (Dual) 12VDC Square - 60mm L x 60mm H Ball 65.0 CFM (1.82m³/min) 4 Wire Leads per Fan
