EVQ-P8 Series

Part	Switch Travel	Mechanical Life (Cycles)	Termination Style	Actuator Length (Right Angle)	Mounting Type	Circuit	Operating Temperature (Min)	Operating Temperature (Max)	Actuator Type	Contact Rating (Current)	Operating Force	Switch Function	Actuator Orientation	Outline Length	Outline Width	Illumination
Panasonic Electronic Components EVQ-P8H03B	0.7 mm	1000000 Cycles	SMD (SMT) Tab	2.5 mm	Edge Mount Right Angle	SPST-NO	-40 °C	85 °C	Standard	0.02 A	0.25 kgf	Off-Mom	Side Actuated	6.2 mm	2.55 mm	Non-Illuminated
Panasonic Electronic Components EVQ-P8003M	0.25 mm	1000000 Cycles	SMD (SMT) Tab	2.1 mm	Edge Mount Right Angle	SPST-NO	-40 °C	85 °C	Rectangular Button	0.02 A	0.1 kgf	Off-Mom	Side Actuated	6.2 mm	2.55 mm	Non-Illuminated
Panasonic Electronic Components EVQ-P8403M	0.25 mm	500000 Cycles	SMD (SMT) Tab	2.1 mm	Edge Mount Right Angle	SPST-NO	-40 °C	85 °C	Rectangular Button	0.02 A	240 gf	Off-Mom	Side Actuated	6.2 mm	2.55 mm	Non-Illuminated
Panasonic Electronic Components EVQ-P8603M	0.25 mm	200000 Cycles	SMD (SMT) Tab	2.1 mm	Edge Mount Right Angle	SPST-NO	-40 °C	85 °C	Rectangular Button	0.02 A	350 gf	Off-Mom	Side Actuated	6.2 mm	2.55 mm	Non-Illuminated
Panasonic Electronic Components EVQ-P8203M	0.25 mm	1000000 Cycles	SMD (SMT) Tab	2.1 mm	Edge Mount Right Angle	SPST-NO	-40 °C	85 °C	Rectangular Button	0.02 A	160 gf	Off-Mom	Side Actuated	6.2 mm	2.55 mm	Non-Illuminated

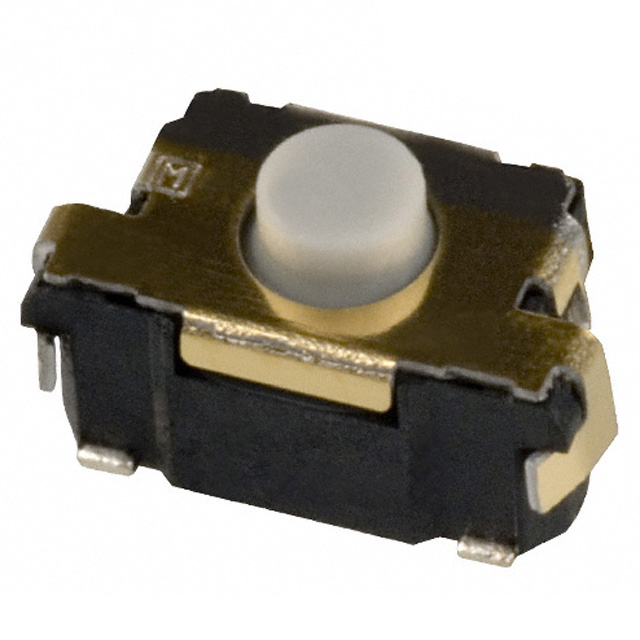

Panasonic Electronic Components EVQ-P8K03Q	0.7 mm	500000 Cycles	SMD (SMT) Tab	2.5 mm	Edge Mount Right Angle	SPST-NO	-40 °C	85 °C	Standard	0.02 A	350 gf	Off-Mom	Side Actuated	6.2 mm	2.55 mm	Non-Illuminated
